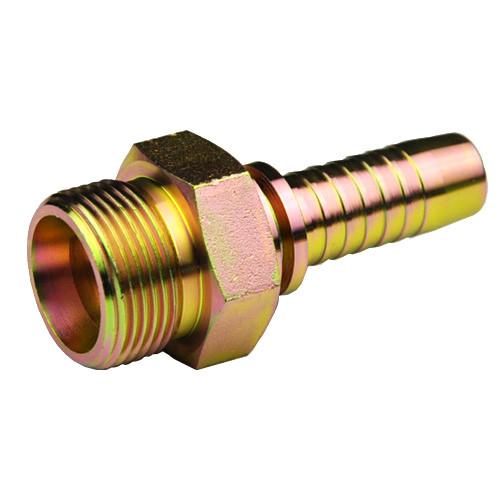

Metric 60 Degree Cone Fittings / Industrial Hose Couplings Forged Technics
Metric 60 Degree Cone Fittings / Industrial Hose Couplings Forged Technics
Specifications
Brand Name :
XD
Model Number :
10611
Place of Origin :
NINGBO CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Stainless Steel, Brass, stainless steel, carbon steeL
Thread :
METRIC
technics :
Forged
Type :
Coupling
Connection :
male
Color :
ucp
Surface treatment :
Cr+3, Cr+6, Zn-Ni, Zinc plated
Products :
METRIC MALE 60°CONE SEAT Hose hydraulic fitting
Brand Name: :
XD
Shape :
Equal
Description

METRIC MALE 60°CONE SEAT Hydraulic Connector / Hose hydraulic fitting / hydraulic coupling

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

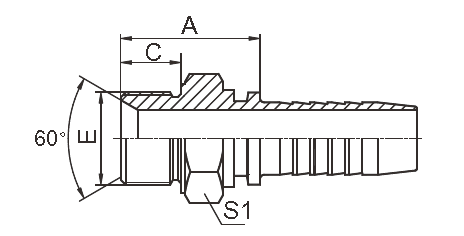

Metric 60 Degree Cone Fittings / Industrial Hose Couplings Forged Technics

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
10611-14-04 M14X1.5 6 04 23.5 11 19
10611-16-04 M16X1.5 6 04 27.5 12 22
10611-16-05 M16X1.5 8 05 27.5 12 22
10611-18-06 M18X1.5 10 06 29.5 12 24
10611-22-06 M22X1.5 10 06 30.5 14 27
10611-22-08 M22X1.5 12 08 31 14 27
10611-24-10 M24X1.5 16 10 35 14 30
10611-26-10 M26X1.5 16 10 35 16 32
10611-27D-10 M27X1.5 16 10 35 18 32
10611-27-10 M27X2 16 10 37 18 32
10611-30D-12 M30X1.5 20 12 38 18 36
10611-30-12 M30X2 20 12 38 18 36
10611-42-20 M42X2 32 20 46 20 50
10611-45-20 M45X2 32 20 46 20 55
10611-48-24 M48X2 40 24 46 20 55
10611-52-24 M52X2 40 24 46 20 60


We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.
We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
