Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control
Specifications
Brand Name :
CBFI
Model Number :
CV5000
Certification :
ISO SGS, CE, BV
Place of Origin :
China
MOQ :
1 set
Price :
USD1 to USD99900 per set
Payment Terms :
T/T
Supply Ability :
40 sets per month
Delivery Time :
30 working days
Packaging Details :
standard wooden case for the cube ice machine
Ice shape :
cube ice
Machine Material :
Stain;ess steel 304
Ice size :
22mm*22mm*22mm or 29mm*29mm*22mm
Cooling method :
air cooled, water cooled
Compressor :
Bock/ / Copeland
electrical components :
LG
ice :
edible
Refrigerant :
R507 R404a
Expansion Valve :
Danfoss
Daily Production :
5 ton
Description

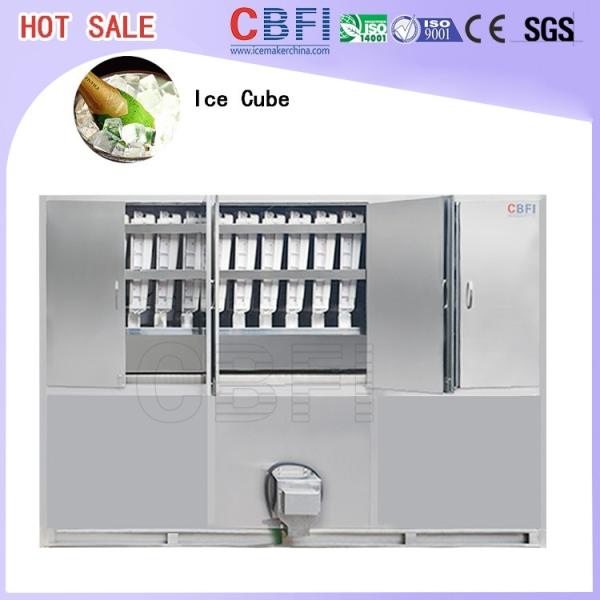

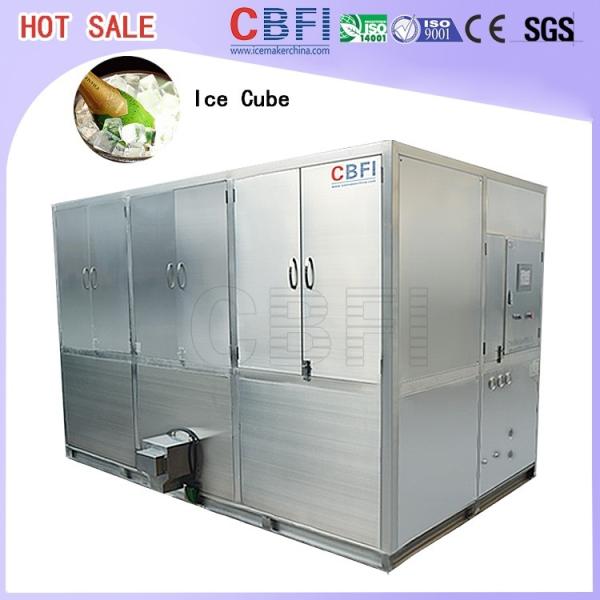

Commercial Ice Maker / Ice Cube Making Machine With PLC Central Program Control

Cube Ice Maker Machine

1. Ice cube has two sizes:22m:m*22mm*22mm and 29mm*29mm*22mm

It takes about 20-23minutes to freeze ice for one time

Ice cube size

22mm*22mm*22mm

 29mm*29mm*22mm
Ice freezing time

20 minutes/shift

 23 minutes/shift
Production 69kg/time; 208kg/hour

79kg/time; 208kg/hour

2. Ice cube is semi-automatic control by PLC(the famous Siemens brand)system, which easy to control, also has more multiple functions.For example, automatic ice freezing , automatic ice falling, automatic water making up,automatic ice coming out, all the message will be display on the PLC displayer,don’t need to shovel the ice by people’s hand,which can guarantee the ice is sanitary and clean.

3. There is an ice storage bin under the ice grids, where can store the ice when the ice falling down,it is very useful. There is a screw dispense conveyor,which can make the ice falling quickly and cut the ice automatically.

4. There is a special pedal switch, when finish the ice, you step on this pedal switch ,

the ice will come out automatically from the ice discharge outlet,don’t need to shovel the

ice by people’s hand,which can guarantee the ice is sanitary and clean.

Item Name of Components Brand Name Original Country
1 Compressor Germany
2 Evaporator CBFI China
3 Water cooled condenser CBFI China
4 Solenoid valve Castal Italy
5 Expansion valve DANFOSS Denmark
6 PLC Program control SIMENS Germany
7 Electrical components LG (LS) South Korea
8 Refrigerant filter - drier ALCO America
9 Oil filter Emerson America
10 High and low pressure meter Recfo Switzerland
11 Low and high pressure relay Danfoss Denmark
12 Suction accumulator D&F China
13 Titanium tube evaporator CBFI China

After- sales service:

(1) During 2 years after selling, maintenance and parts free of charge.

(2) We can provide 12 months warranty for our machine. During the warranty period, if your machine don’t work, you can send us pictures or video or call us about the fault. We will immediately mail you the solution to solve the problems within 24hours. If the part is broken for nonpersonal reason,we will replace one for free within guarantee period. But if beyond guarantee period, we will charge market price for the new parts.
