TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System
TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System
TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System
TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System
Specifications
Brand Name :
CBFI
Model Number :
TV10-TV300
Certification :
CE, ISO，FE
Place of Origin :
China
MOQ :
1 set
Price :
USD 9500~10000000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
50 to 60 sets/month
Delivery Time :
35 days after the deposit
Packaging Details :
wooden case
Compressor :
Germany compressor
tube ice diameter :
35mm, 28mm, 22mm
Evaporator :
Stainless steel 304 seamless pipe
Cooling way :
Water cooling
Daily Capacity :
10,000kg/24h
Control system :
Touch screen with English
PLC :
Siemens system
Origin :
Guangzhou, China
Material :
304 Stainless steel
Refrigerant :
R404A
Description

TV10~TV300 Freon Refrigeration System R507 or R404a Refrigerant Ice Tube Machine

1. CBFI tube ice machine pictures

TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System

2. Machine parameter

Model
Ice Making
Capacity
Rated
Power

Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
 Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
 kw
W*H*L(mm)

KG
TV10
1.0
4.28
0.55
1.1
0.18
 0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
 0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
 0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
 1.5
1600*1400*2250
1800

TV100

10.0
29.2
1.5
4
1.5
 1.5
1200*1200*3100

2300*1550*1800
3500
TV150
15.0
49
2.2

5.5
1.5
 1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
 2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
 2.2
3000*2200*2500

2200*1900*6200
7200

3. Machine feature

  • CBFI tube ice machine adopts oil balance equipment and oil reservoir. It is to keep enough oil to come back to compressor and lubricate it .Maybe it is small things, it is very important for compressor to run for long time.
  • Automatic ice out let: no need hand operation, save labor cost.
  • PLC controller: german siemens PLC controller control automatically
  • Evaporator is very important to tube ice machines. CBFI Evaporator adopts PU insulation that is formed with stainless steel cover together. It can improve refrigeration capacity and save power, and also the material can keep ice clean.

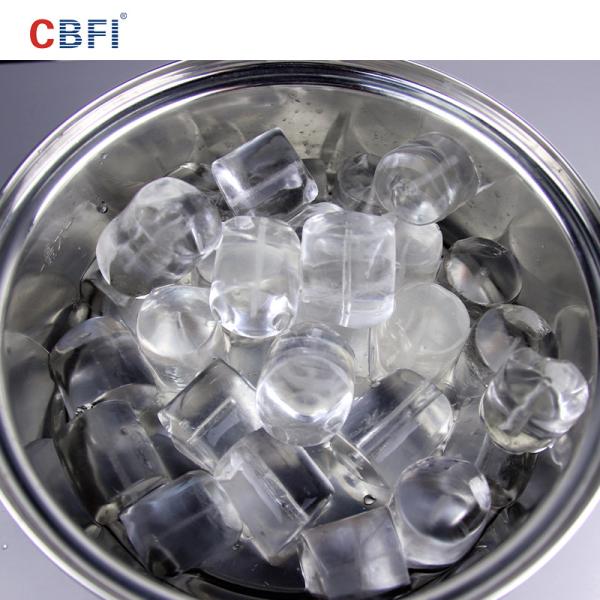

  • Different ice size for choice : 22mm , 28mm and 35mm.

TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System

TV10 ~ TV300 Freon Refrigeration System Ice Tube Machine with PLC Siemens System

4. Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor German
2 PLC Germany SIMENS

3

 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China NanFang
9 Touch Screen China MCGS
10 Machine Framework Material Carbon Steel Q235
5.Company Profile
Our company is located in beautiful city, Guanzghou. As the largest supplier of large edible ice machines, large industrial ice machines, cold rooms, etc. in the world, Guangzhou Icesouce Co., Ltd.(CBFI) is a high-tech company setting R&D, production, sales and service in one. Our products are sold to European Union, North America, Africa, South America, South-east Asia and so on, more than 100 countries or areas.
