R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket
R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket
Specifications
Brand Name :
CBFI
Model Number :
CV10000
Certification :
ISO, CE
Place of Origin :
Guangzhou,China
MOQ :
1 set
Price :
$100,000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after payment
Packaging Details :
International Standar Wooden Case
Compressor :
Germany
Cooling way :
Water cooling
Ice size :
22*22*22 or . 29*29*22mm or 38*38*22mm
Evaporator :
Nickeled Cube ice mold
Material :
304 stainless steel for all frame
daily capacity :
10 tons
Refrigerant :
R404a or R507
Packing :
International standard wooden case
Description

10 tons cheap factory use energy saving stainless steel large capacity ice cube machine

10 tons cheap factory use energy saving stainless steel large capacity ice cube machine

Application:


Cube ice machines are widely used in hotels, restaurants, bars, fastfood shops, supermarkets and cold drink shops,et. Icesource ice machine are highly efficient, energy saving,safe and environmentally friendly and quickly becoming the most popupar choice for client around the world.

R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket

10 tons per day Commercial Ice Cube Making Machine Parameters

Working Conditions

 Refrigerant R507/ R404a
Cooling way Water cooling / Air cooling
Power supply 380v/50Hz/3phase , 380v/60Hz/3phase ,
220v/50Hz/3phase, 220v/60Hz/3phase
Ambient temp. +32 ℃
Supply water temp +20 ℃
Evaporating temp. -12 ℃
Condenser temp. +40 ℃
Relative humidity 85 %
Noise 55dB

Compressor

 Brand Name (Germany)
Product Model 6HE-28
Power 19.3kw *2
Refrigerating Capacity 48.5kw *2

Cooling Tower
(Water cooling)

 Brand Name CBFI
Size Φ2100*H2080 mm
Power of Cooling Water Pump 4kw
Power of Cooling Fan 1.5kw
Ice making water Circulating pump Brand Name Nanfang
Power 4kw

Ice Outlet Motor

 Brand Name Nord
Power 1.1kw
Delivery time 62 days after the receipt of deposit

10 tons per day Cheap Ice Cube Machine Supporting Equipment

1. Cold room :storage ice and keep the ice in high quality.

2. RO water treatment equipment :Purify the water , make cube ice more clean and crystal.

3. Sealer : sealing the ice bag

4. Digital scale:scale the bag ice

R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket

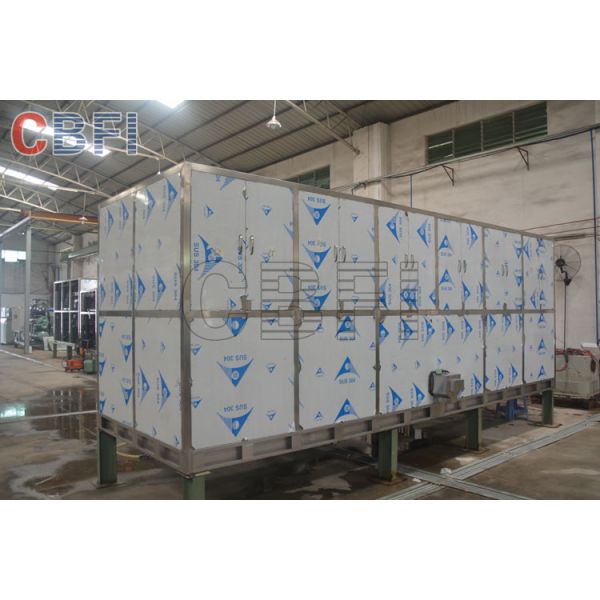

Machine outlook:

Stainless steel material with good quality and nice look.

R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket

Feature of 10 Tons Large Capacity Ice Cube Machine:

  • Size of ice: 22*22*22, 29*29*22
  • Output: 3 tons per 24 hours
  • Power Consumption: 85 kw.h for each ton
  • Working condition: environmental temperature: 32℃, water supply temperature: 20℃

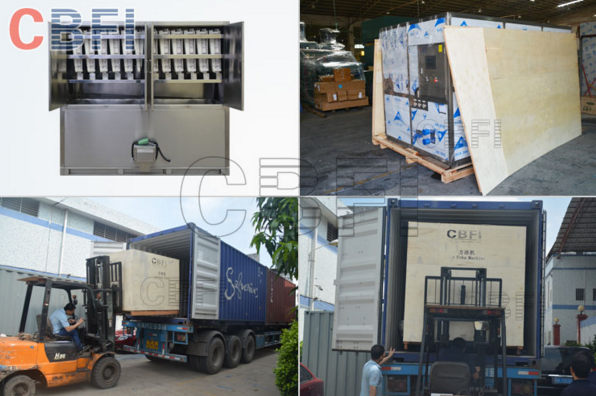

Packing & Delivery:

  • Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water fittings.
  • Machine come into use, customer only need prepare power for the machine.
  • All required components for installing the machine will be provided.

R404a Refrigerant 10 Ton Ice Cube Machine For Restaurant , Supermarket
