Specifications
Brand Name :
CBFI
Model Number :
BF30000
Certification :
ISO, CE, SGS, BV
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD1 - USD100000
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
30 set per month
Delivery Time :
30 work days
Packaging Details :
Standard wooden case
Evaporator Material :
Inner Carbon steel Q235, Outer Stainless steel 304
PLC :
Germany Siemense
Elextricity components :
LG, Schneider
Flake ice thickness :
1.0 mm to 2.5 mm
Cooling system :
air cooling ; water cooling
Function :
cooling and keep fresh
Description

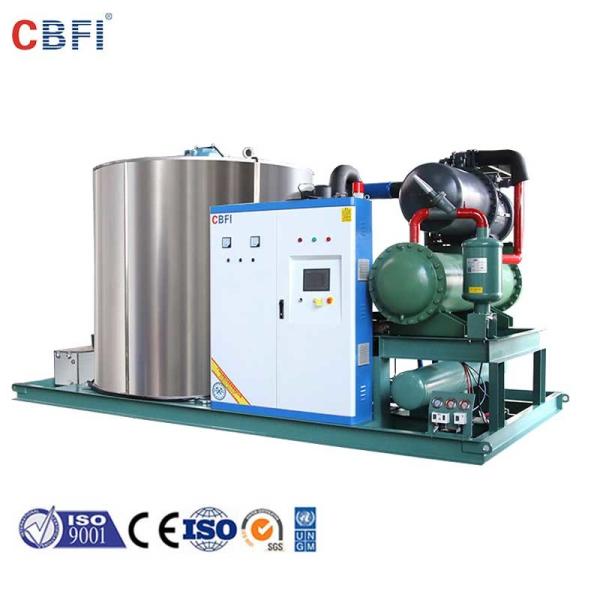

CBFI BF30000 30 Tons Per Day Ice Flake Machine

30 tons 24 hrs flake ice machine BF30000 is very suitable for fresh fish cooling. Our machine is very welcomed in aquatic product processing plant. Flake ice is soft and thin, and do no damage to the skin of the fish. Contact us for more details.

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

Product Description

Why choose us

The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use space to store ice. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.
Features

Daily Capacity: 30 ton 24 hrs

Containerized system is available, it is movable. And the ice machine is pre-installed.

Machine power supply: 3 phase industrial power supply

PLC controlling system, very easy to use.

Design available for water lacking areas to use sea water to produce ice.

With a rake system you can achieve automatic producing.

Low temperature: ice temperature -8 degree

Flake Ice shape with excellent cooling performance

No sharp edges, so it no hurt the cooling products

1~2 mm thickness, no need to crush and can use at any time

Product Details
30 Tons Per Day Ice Flake Machine Air Or Water Cooling
Specification
Model
Ice making capacity
Capacity of refrigeration
Machine dimension
Weight of machine
No.
Ton/24h
Kw
W*H*L(mm)
KG
BF1000
1
8..85
1300*960*1200
210
BF2000
2
17.84
1500*1200*1350
360
BF3000
3
24.15
1800*1250*1400
1000
BF5000
5
35.1
2100*1250*1500
1100
BF6000
6
45.85
2500*2040*2200
1100
BF8000
8
52.7
2100*1250*1500
1300
BF10000
10
76.1
2300*1750*1740
1500
BF15000
15
110.9
3200*2100*2000
3200
BF20000
20
151
3400*2200*2560
4200
BF30000
25
180
3800*2300*2560
5000
BF35000
30
214.2
4500*2300*2800
6000
BF40000
40
226.1
7800*2100*2480
7500
BF50000
50
268.1
5000*2300*3000
10000
BF60000
60
278.4
5500*2300*3200
12000

Successful Project

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

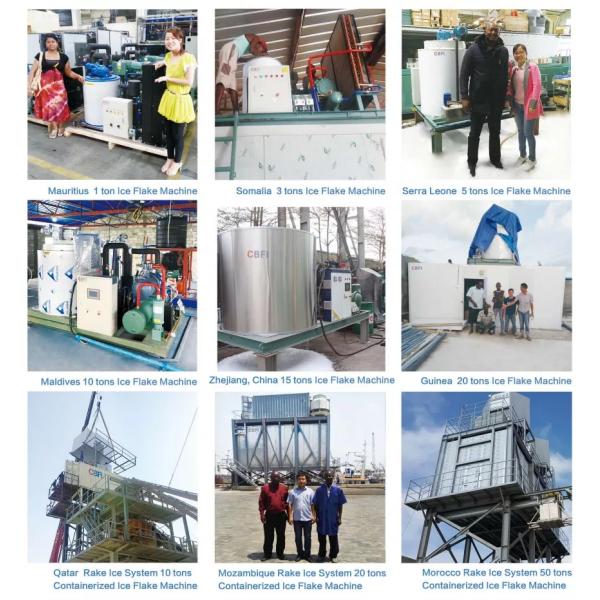

Flake Ice Projects
CBFI uses a flake ice machine and an ice rake system for concrete cooling in fishery or large infrastructure projects. Flake ice is perfect to preserve aquatic goods, and we can make it seawater types. Due to the good cooling performance of the flake ice machine, we solved the problem of hydration heat in the concrete forming process. We are a reliable partner that can help you ensure the quality of your business.
Product Application
30 Tons Per Day Ice Flake Machine Air Or Water Cooling
Flake Ice Applications
The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.

About us

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

Packaging and FAQ

30 Tons Per Day Ice Flake Machine Air Or Water Cooling

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),

Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
