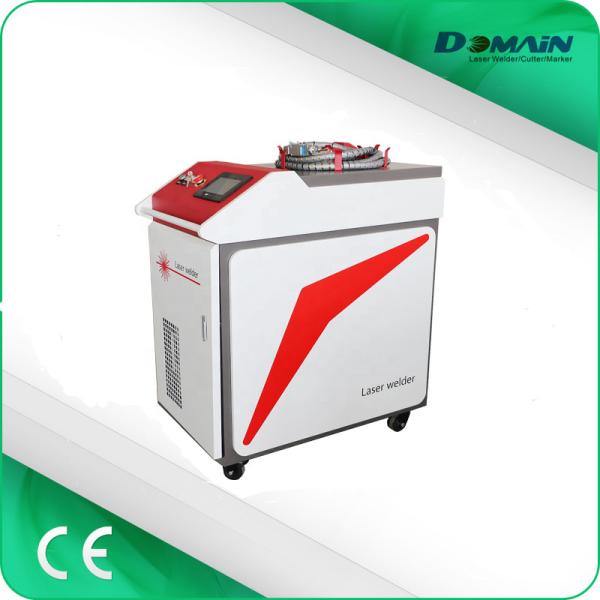

AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel
AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel
Specifications
Brand Name :
DOMIANLASER
Model Number :
CY-W1000FS
Certification :
CE,FDA,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
0-11999
Payment Terms :
L/C, T/T, Western Union, D/A
Supply Ability :
100 units per month
Delivery Time :
3-7working days
Packaging Details :
Plywood cases
Voltage :
220V/380V
Condition :
New
Warranty :
2 years
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support
Usage :
metal welding
Showroom Location :
canada, turkey, UNITED KINGDOM, United States, ITALY
Core components :
MOTOR, Bearing, GEAR, PLC
Max power :
1000w 2000w
Applicable :
Metal Stainless Steel Welding
Laser product :
New Product 2020
Main laser type :
Fiber laser welder
Model :
Automatic Fiber Handheld Laser Spot Welding Machine
Description

Automatic Gun Hand Held Welding Fiber Laser Welder Machine For Stainless Steel Metal

AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel

Significant advantages of handheld laser welding:

Various welding of non-standard metal parts, manual welding is more flexible;

Perfect welding quality, small deformation, high penetration, no weld penetration;

Various welding process methods, spot welding, seam welding, and stitch welding Etc.;

High welding efficiency, replacing traditional TIG welding equipment;

Maximum welding cost, no consumables, energy saving and environmental protection

Technical parameter:

Equipment model
CY-W500FS
CY-W1000FS
CY-W1500FS
CY-W2000FS
Rated output power
500W
1000W
1500W
2000W
Power adjustment range
500W±2%
1000W±2%
1500W±2%
2000W±2%
Laser type
Continuous fiber laser
Laser wavelength
1070nm
FM
0～5Khz
Spot diameter
5～7mm
Welding speed range
1～120mm/s
Welding gap requirements
≤0.5mm
Wire width
≤4mm
≤5mm
Welding thickness
﹤1.2mm stainless steel

﹤0.8mm Carbon steel
﹤2.5mm

stainless steel

﹤1.5mm Carbon steel

﹤1mm

aluminum
﹤4mm stainless steel

﹤2.5mm Carbon steel

﹤2mm aluminum
﹤5mm stainless steel



﹤3.5mm Carbon steel



﹤3mm aluminum
Beam quality
M²﹤1.1
M²﹤1.15
M²﹤1.2
M²﹤1.2
Output fiber length
Standard 10m / customizable lengthening
Fiber bending radius
100mm
Way of working
Continuous CW/modulation
Working environment temperature range
15～35°C/<70% without condensation
Weld head operating mode
Normal / hand-held swing welding mode
Power Consumption of the Whole Machine
4KW
6KW
9KW
12KW
Cooling mode
Built-in chiller
External chiller
Power requirements
AC220V±10%/50Hz/40A
Three-phaseAC380V±10%/50Hz/40A

Laser Model Fiber
Repetition Rate continuous
Maximum welded ≤2000w
Laser power 500w-2000w ( Optiona)
Fiber diameter 25um -100um (Optiona)
Laser welding penetration 0.39mm-4.57mm
Laser welding speed ≤20m/min
Aiming and positioning Red light indication
Cooling way water cooling
Welding material Carbon steel, stainless steel, galvanized steel, aluminum, etc
Operating temperature 10℃-40℃

Main Features

1) The hand-held welding gun head is flexible and convenient for outdoor welding.

2) The operating mode of the hand-held welding tip allows the workpiece to be welded at any angle anywhere.

3) Intelligent switching of dual light paths, evenly distributing energy according to different time and different light.

4) Suitable for all kinds of complicated welding methods and spot welding of various equipment.

5) The operation is simple, it can be welded at the beginning, and it is not necessary to cost a large amount of money to weld the master.

6) No welding station is required, the space is small, the welding products are diversified, and the product shape is flexible.

7) Low material costs, low energy consumption and low maintenance costs.
