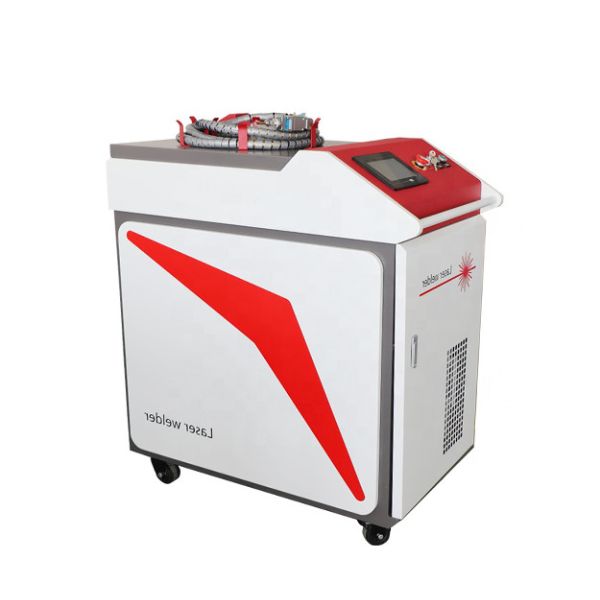

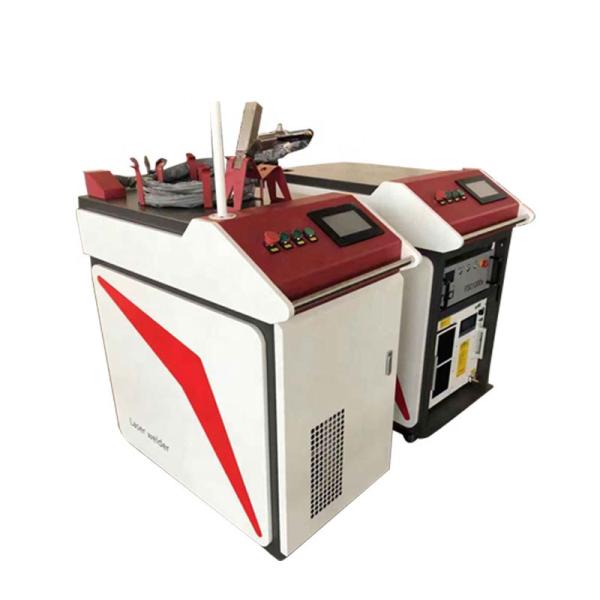

Portable Raycus 1070nm Fiber Laser Welding Machine
Portable Raycus 1070nm Fiber Laser Welding Machine
Portable Raycus 1070nm Fiber Laser Welding Machine
Portable Raycus 1070nm Fiber Laser Welding Machine
Portable Raycus 1070nm Fiber Laser Welding Machine
Portable Raycus 1070nm Fiber Laser Welding Machine
Specifications
Brand Name :
Domainlaser
Model Number :
CY-W1000FS/CY-W1500FS/CY-W2000FS
Certification :
CE,CCC
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
11999USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
3-5working days
Packaging Details :
plywood cases
Voltage :
220V/380V
Condition :
New
Warranty :
2 years
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support
Usage :
Welding,Carbon Steel welding,outdoor work with power source,cast iron,weld materials of stainless steel
Arc current :
20-400A
Pulse frequency :
50/60 HZ
Motor type :
AC Motor
Color :
Red
Type :
IGBT
Max output power :
1000W
Wavelength :
1070nm
Welding depth :
0.1-2.5mm
Fiber Cable :
10-15m
Welding application :
Hotels, Building Material Shops, Manufacturing Plant,
Welding materials :
ss, aluminum, iron, galvanized steel, brass and etc
Product name :
Portable Handheld Laser Welding Machine
Laser source brand :
JPT / RAYCUS / MAX / IPG
Description

Portable fiber laser welding machine, CE FDA handheld fiber laser welding machine, China laser welder

Portable Raycus 1070nm Fiber Laser Welding MachinePortable Raycus 1070nm Fiber Laser Welding Machine

Technical Parameters
Model
CY-W1000FS Handheld laser welding machine
Polarization state
Continuous or modulate
Laser type and wavelength
Raycus 1070nm fiber laser generator
Laser Power
1000W (1500W / 2000W for option)
Cooling mode
Pure water cycle (water chiller 1.5P)
Power adjustment range
10--100%
Laser quality
M²<1.3
Laser turn-on time
50--80µs
Laser turn-off time
30--50µs
Welding thickness
0.1--2.5mm
Welding speed
0--120mm/s
Frequency
20--50Khz
Fiber laser cable length
5.0m / 10.0m (15.0m option)
Output mode
QBH
Power supply
220V±10%, 50/60Hz, 40A
Working Environment Temperature
10-45°C
Machine power
3500W
Cooling system
Inside water chiller 1.5P
Packing size
1450-1360*840mm
G.W
200kgs
Delivery time
3--5 working days

Description:

1. This machine adopts Raycus 1000 watt fiber laser, which has high electro-optical conversion efficiency & long laser life;

2. The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat;

3.The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;

4. Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.

5.The hand-held welding gun replaces the previously fixed optical path, and the welding is hand-held, flexible and convenient, and the welding distance is longer, and the limitation of the space of the worktable is overcome, and the workpiece cannot be automatically welded when the workpiece size is not uniform. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large workpieces at a long distance.

Features:

1. Precise positioning
Optical fiber laser welding machine is equipped with red point, which is convenient to observe, and can precisely locate by spot in micro-welding.


2. Uniform weld spot
The spot energy distribution of optical fiber laser welding machine is uniform, and it has the best spot needed for welding characteristics.


3. Suitable for all kinds of weld's screams
Fiber laser welding machine adapts to all kinds of complex welds, spot welding of various devices, and welding seams of thin plates within 3mm. It has fast welding speed, large depth and small deformation.


4. Batch & Mass Production
Optical fiber laser welding machine can customize special automatic fixture to realize mass production of products.


5. Corrosion Resistance and High Temperature Resistance
Fiber laser welding machine uses ceramic concentrator, which can be welded at room temperature under special conditions, such as vacuum or through glass materials, and has simple equipment, corrosion resistance and high temperature.


6. whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs.

Application industry:

Water pipe joints, reducer joints, tees, valves, battery industry: lithium batteries, battery packs, laser welding of electrodes, glasses industry: stainless steel, titanium alloy and other materials for the buckle, frame and other positions Precision welding, hardware industry: impeller, kettle, water cup, stainless steel bowl, sensor, diode, aluminum alloy, mobile phone battery, door handle, shelf, etc.

Warranty:

This laser welding machine warranty for two years. We will offer good parts for free if your parts are broken during warranty,which was not caused by artificial.
♦ Our technician can offer free training in our workshop.
♦ Our technician can go to your place and offering service if you want.
♦ 12 hours online for your after-sale problems.

Portable Raycus 1070nm Fiber Laser Welding Machine

Any questions please kindly contact Amy:

Mobile/Whatsapp: +86 155 2784 9530
Wechat: 15527849530/zywyj6480
QQ: 775861566
Skype: amy92928
WUHAN CHUYU OPTOELECTRONIC TECHNOLOGY CO.,LTD (DOMAIN LASER)
Add: 1st Floor,Plot C,Juxian Bd,Changzui Technology Park,Gaoxin 6th Rd,Jiangxia Dist.,
City: Wuhan China 430200
Tel: 0086 27 87929225 ext 604
