Portable 500W 600W Fiber Laser Welder For Channel Letter
Portable 500W 600W Fiber Laser Welder For Channel Letter
Specifications
Brand Name :
Domainlaser
Model Number :
CY-WF500/CY-WF600
Certification :
CE/FDA/ISO
Place of Origin :
China Wuhan
MOQ :
1 unit
Price :
11999usd/per unit
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200units per month
Delivery Time :
3-7 working days
Packaging Details :
plywood cases
Type laser welder :
Metal Welding
Key words :
handheld laser welding machine
Welding applications :
Stainless Steel, Titanium, Iron, Galvanized sheet
Cooling system :
Water Cooling
Welding type :
Manufacturing Plant
Laser output :
Laser Power 300W~600W
Power supply :
380V/50Hz/20A
Position :
Optional CCD+ Red Dot
Product name :
Trade Assurance Portable Small Fiber Laser Optic Welder
Voltage :
220V/380V
Warranty :
12 Months
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support
Usage :
Welding,Carbon Steel welding,outdoor work with power source,weld materials of stainless steel
Description

Trade Assurance Portable/Handheld/Manual Fiber Laser Optic Welder Channel Letter Laser Welding Machine Price

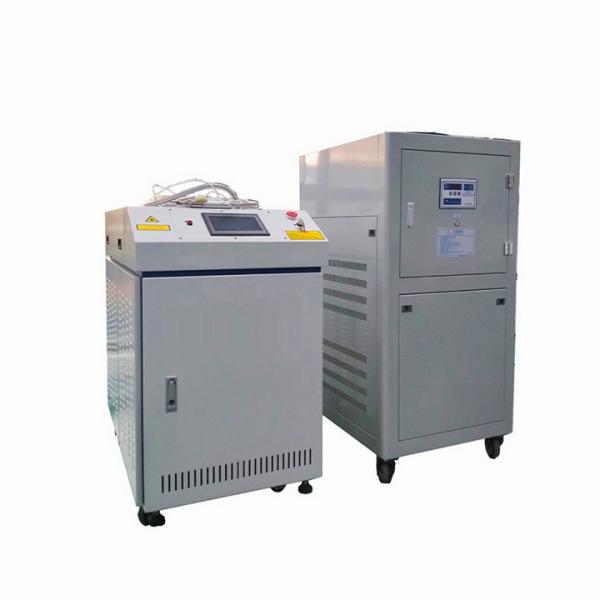

Portable 500W 600W Fiber Laser Welder For Channel Letter

Technical Index:

Product Name Trade Assurance Portable Small Fiber Laser Optic Welder Channel Letter Laser Welding Machine Price
Model No. CY-WF500 CY-WF600
Laser Power 500W 600W
Laser Source Nd3+: YAG bar Φ8*155mm Nd3+: YAG bar Φ8*165mm
Laser Wavelength 1064nm
Laser Tube Qty’ 1 pc 2 pcs
Single-pulse Energy 100J 120J
Pulse Duration 0.2~20ms
Frequency Range 0.1~100Hz 0.1~100Hz
Workable Current 50~300A 50~300A
Welding Spot Diameter 0.3~1.0mm 0.3~1.2mm
Table Size W1000*L750mm
Laser Arm Stretch total length 1370mm,strech distance 750mm
Fiber Cable Length 5 meters (work distance of pen mode)
Settings Memory 100 groups
Control Panel 7” color LED touch screen
Language Option English/Chinese
Power Supply 220V/50Hz (220V/60Hz optional) 380V/50Hz (380V/60Hz optional)
Power Consumption Laser: 8KW , Chiller:1KW Laser:14KW , Chiller:3.3KW
Dimensions(mm)

Laser &table: 1730*750*1250

Chiller: 480*580*800 (1HP)

Laser & table: 1730*750*1250

Chiller: 1100*650*1350 (3HP)
Net Weight 305KG 400KG
Package Volume 2.5CBM 3CBM
Package Weight 345KG 450KG
Applicable Materials Stainless Steel, Titanium, Iron, Galvanized sheet Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet
Material Thickness <=2.5mm <=3mm

Advantage:

1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
4.The parameters are controlled by intelligent remote controller, which is simple and convenient.
5.The work bench can be lifted, and moved in three dimensions.
6.The size of light spot can be adjusted.

Applicable Industry:

1. Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,Chemical, automobile manufacture and other industries.
2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,Electromagnetic valve, and drive starting stator.
3. The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
4. In metallurgy industry, such as silicon steel plate welding.
5. The welding of engine and engine lamina in application military industry.
6. The precise spot welding of the electronic components and close welding of relay.
7. In electrical equipments industry, such as silicon steel sheet welding, the rotor of the air-conditioner Drive welding, and creepage protection welding.

Applicable Materials:

Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

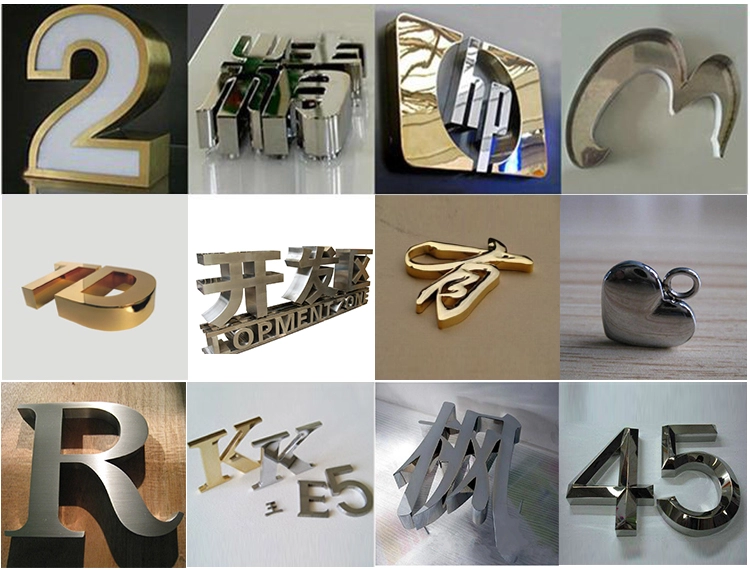

Welding samples for yag fiber handheld laser welder

Portable 500W 600W Fiber Laser Welder For Channel Letter

Any details please kindly contact AMy:

Mobile/Whatsapp: +86 155 2784 9530
Wechat: 15527849530/zywyj6480
QQ: 775861566
Skype: amy92928
Email: sales3@domainlaser.com
