Specifications
Brand Name :
Domain Laser
Model Number :
CY-WY300
Certification :
CE FDA ISO
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union
Supply Ability :
70 sets per month
Delivery Time :
5~8 working dasy
Packaging Details :
Plywood case
Product :
300W Mold Laser Welding Machine
Machine Power :
300W
Laser Source :
Pulsed Nd:YAG
Pulse Width :
0.3-20ms
Beam Diameter :
0.1-3.0mm
Workable Current :
50~300A
Observing System :
Microscope
Description

Military quality 200w portable laser welding machine mold repair yag laser welder 300w laser welding machine

200W 300W Portable Yag Laser Welding Machine For Mold Repair

Introduction

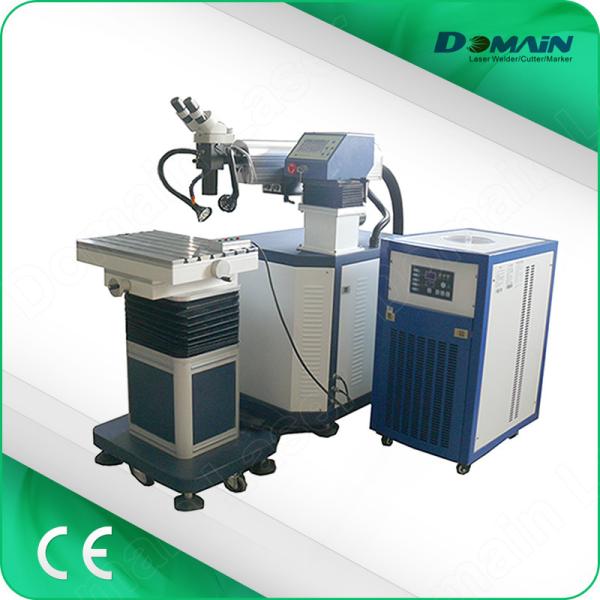

Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.

Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.

Feature

British imported ceramic concentrating cavity, corrosion resistant, high temperature resistant

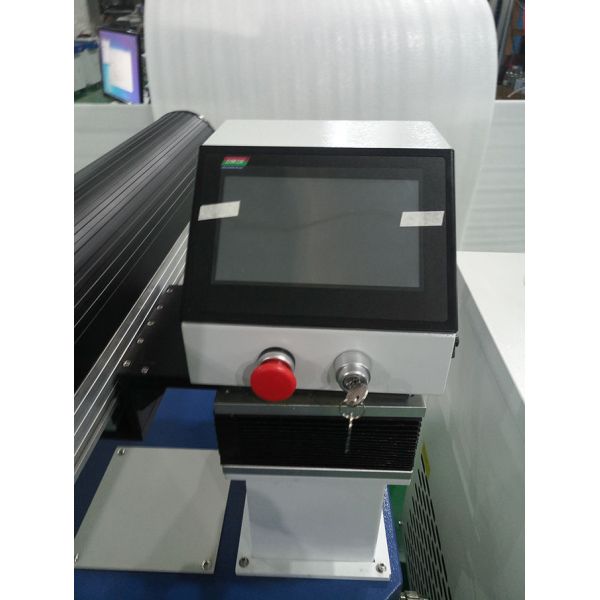

Intelligent control, easy to operate, fast

The laser head can be rotated 360 degrees

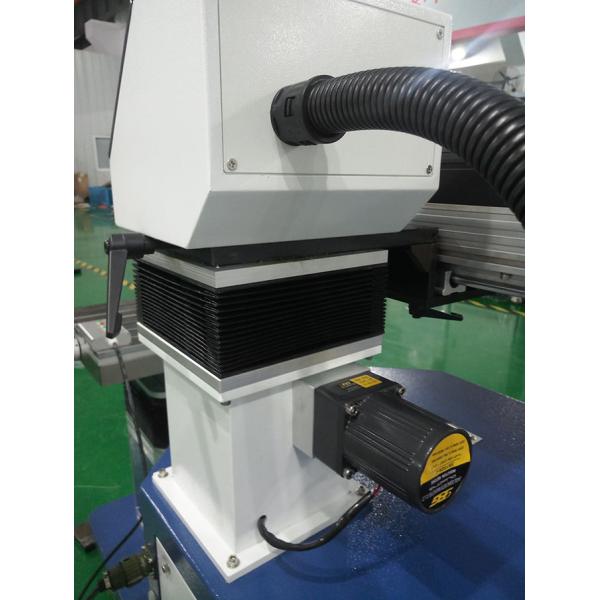

Workbench can be electrically lifted and lowered

three-dimensional movement

Application & Material

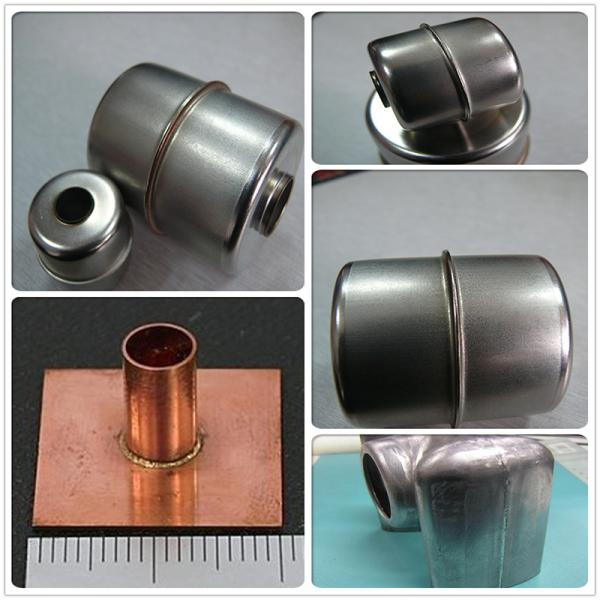

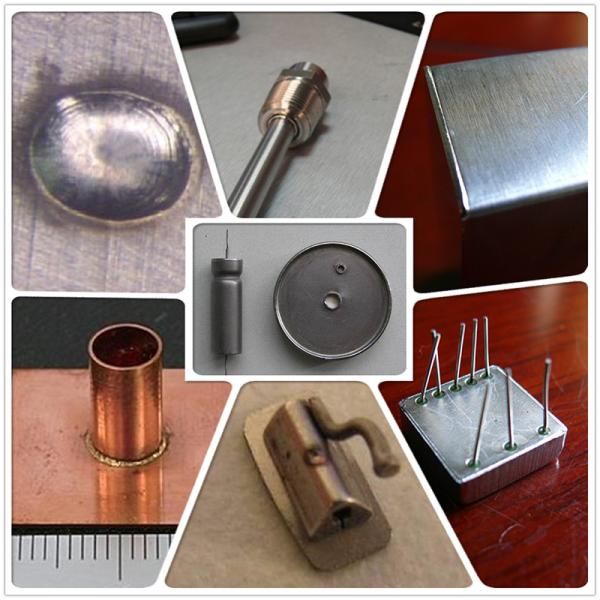

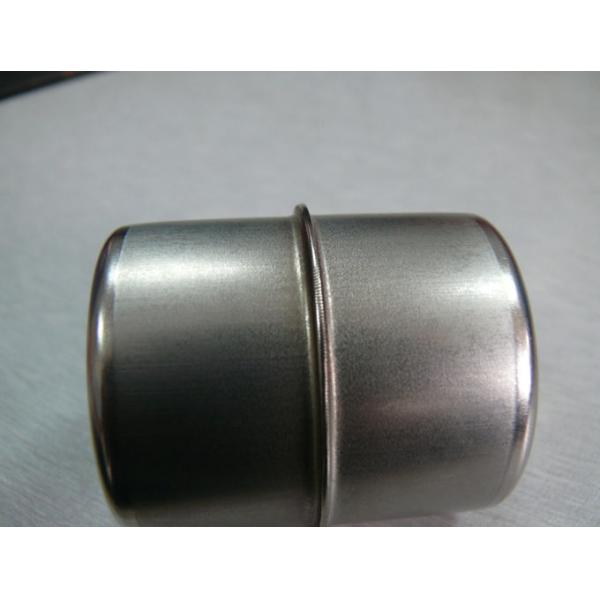

Mould laser welder was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle/etc. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly. General laser mould welder also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.

Parameter

Laser power 300W 400W 500W
Laser Source Pulsed Nd:YAG
Pulse Width 0.3-20ms
Pulse Frequency 0.1-50Hz
Beam Diameter 0.1-3.0mm
Filler Wire Diameter Max 0.6mm Max 0.8mm Max 1.0 mm
Cooling System 1P water chiller 2P water chiller 3P water chiller
Power Supply

220V50Hz

(60Hz optional)

380V/50Hz

(60Hz optional)

380V/50Hz

(60Hz optional)
Power Consumption 9KW 14KW 16KW

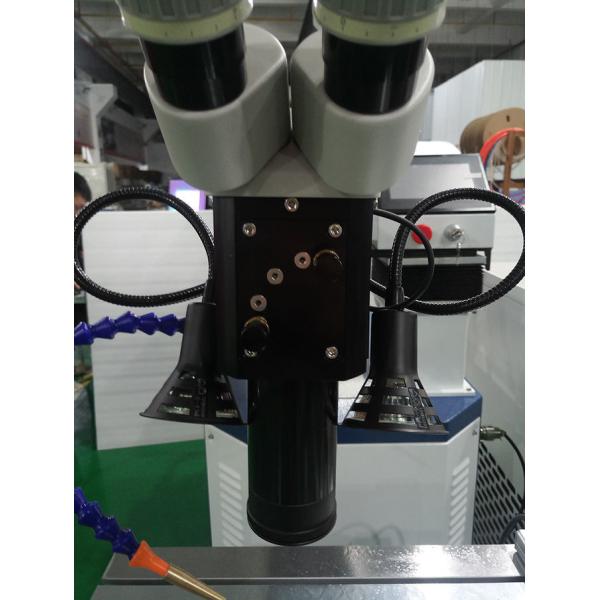

Observing System Microscope 10X
3 axis of table X=250mm, Y=100mm, Z=200mm, XY manual, Z electrical
Data Memorization 100 groups
Illumination LED ring lights
Language Display English & Chinese
Shield Gas Supply One line quick connection (argon)
200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair200W 300W Portable Yag Laser Welding Machine For Mold Repair
