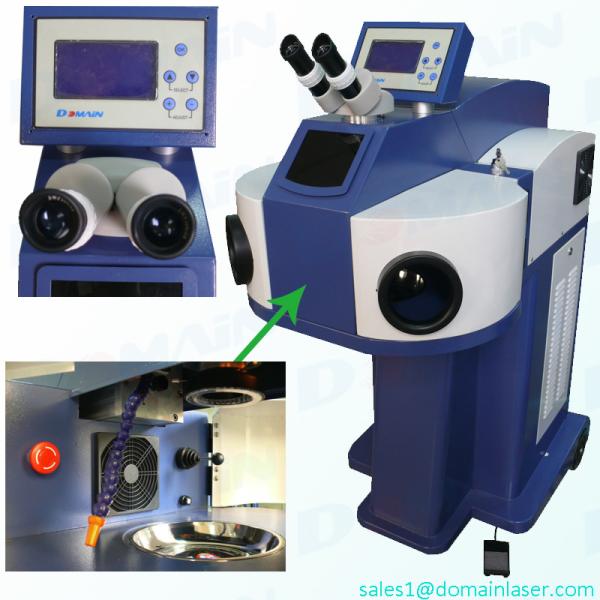

Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Jewelry Repairing 220V 200W Laser Soldering Machine
Specifications
Brand Name :
Domain Laser
Model Number :
CY-W200
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union
Supply Ability :
70 sets per month
Delivery Time :
5~8 working dasy
Packaging Details :
Plywood case
Machine Power :
200W
Laser Source :
Pulsed Nd: YAG
Wavelength :
1064nm
Pulse Frequency :
≤50Hz/60Hz
Shield Gas Supply :
One line quick connection
Pulse width :
0.1-20ms
Water chiller :
1P
Positioning :
Microscope
Description

Gold and Silver Jewelry Hole Repairing Laser Soldering Machine For Laser Welding and Inlaying Jewellery Laser Welder

Jewelry Repairing 220V 200W Laser Soldering Machine

Introduction

Jewelry spot welding machine is specially developed for laser welder of jewelry and mainly used in perforating and spot welder of gold and silver jewelry. It is of touch screen type, adopting new style power source, elaborating operation, and optimizing the optical path, with high photoelectric conversion efficiency, high stability, small size, high configuration and other characteristics.

It gains a wide use in microelectronics, aerospace equipment, optical communication equipment,electric vacuum devices, instruments.

Feature

Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient

The british imported ceramic condenser cavity, corrosion resistance

Condenser chamber life (8--10 years), xenon lamp life of more than 8 million times

The world's most advanced automatic shading system, eliminating the time to protect the eyes

With 24 hours of continuous work capacity, machine performance and stability

User-friendly design, ergonomic, long working hours without fatigue

Application & Material

Stainless steel, copper, gold, silver, gold and other metals and their alloys. Mainly used for jewelry electronic components, communications, crafts and other trades.

Parameter

Model No. CY-W200
Laser Power 200W
Laser Source Pulsed Nd: YAG
Pulse Width 0.1-20ms
Pulse Frequency ≤50Hz/60Hz
Single Pulse Energy 60J
Beam Diameter 0.1-3.0mm
Welding wire diameter Max 0.6mm

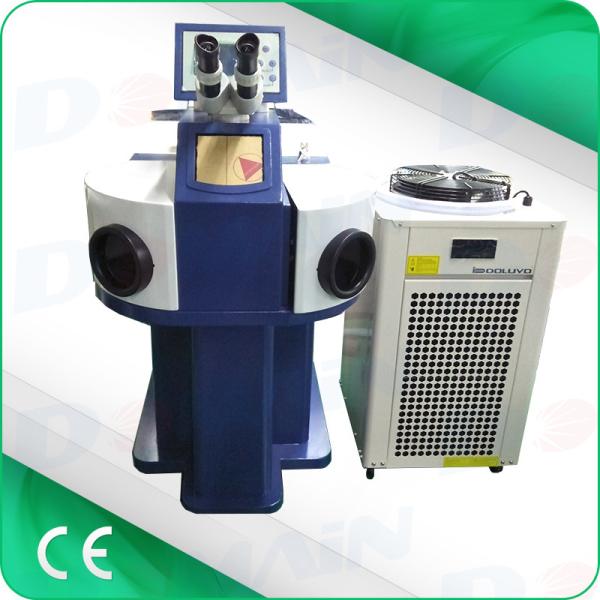

Cooling System 1HP separate water chiller
Power Supply single phase 220V±10%, 50Hz/60Hz,40A
Power Consumption Max 6KW
Observing System Microscope
Chamber Illumination LED circle lamps
Language Display Chinese/English
Shield Gas Supply One line quick connection
Running Environment Tem 5°C-30°C, Hum 5%-85%

Jewelry Repairing 220V 200W Laser Soldering MachineJewelry Repairing 220V 200W Laser Soldering MachineJewelry Repairing 220V 200W Laser Soldering Machine
