High Speed YAG Laser Welding Machine / Automated Laser Welding Machine 20M / Min
High Speed YAG Laser Welding Machine / Automated Laser Welding Machine 20M / Min
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WY1000FS CY-WY1500FS
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
10 ~20 working days
Packaging Details :
Plywood case
Machine Power :
300W /600W /2000W(options)
Laser Wave Length :
1.064um
Single pulse maximum output power :
150J
Positioning accuracy :
0.01mm
heat exchange power :
12.5KW / 18KW
Format supported :
DWG, DXF, PLT, AI, etc.
Description

Automatic Yag Metal Mold Mould Japan Fiber Robot Stainless Steel Welder Robotic Laser Welding Machine For Sale Metal

Product advantages:

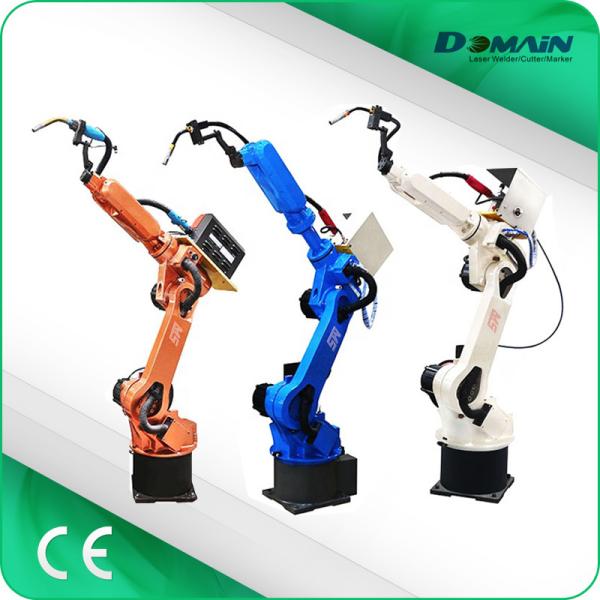

Robotic arm laser welding machine is Accurate and flexible movement, accurate position setting function. Good and stable performance and save spaces, it is mianly used in injection / drawing / stamping / stamping / handling / up / down / assembly and welding, etc.

Features:

1) you could get an excellent Laser Beam with smaller focus diameter and high work efficiency, high accuracy and welding quality;

2) you could realize the robotic laser welding machine running stably as we adopted the top world import fiber lasers, and the key parts can reach 100,000 serving hours;

3) you could get a high Welding Speed which can reach more than 20M/min;

4). you could accomplish saving the electric power consumption and protect environment as the photoelectric conversion rate is up to 25-30%;

5). you could use this robot laser welding machine with easy operations as the fiber line transmission is no adjustment of optical path;


Application areas:

This robot is suitable for mass production of workpiece welding. whether it is production or changeover, robot programming can be prepared in advance, greatly reducing the time required for production site commissioning and shutdown to interrupt production, improving production efficiency and expanding the return on investment of robots. The advantages are reduced operating costs, improved product quality and consistency, improved employee working conditions, increased production, increased manufacturing flexibility, reduced raw material waste, and reduced non-performing rates.

Technical Parameters

Laser Type YAG lamp pump laser generator
Laser Wave Length 1.064um
Maximum Power 300W / 600W
Single pulse maximum output power 150J
Output stability +/-5%
Laser transmission mode Flexible fiber
Power supply Triphase AC 380V
Maximum input power 12kW / 18KW
Size L750 x W1620 x H1340
Working table(optional) Precision electrical slide working table; galvanometer working table; robot device
Positioning accuracy 0.01mm
Cooling system Internal & external double circulation heat exchange
heat exchange power 12.5KW / 18KW
Quantity of fiber transmission branches 1~4
Storable laser type 32 types
Video monitoring(optional) High-definition camera + 14 inch monitor
Format supported DWG, DXF, PLT, AI, etc.
Weight 450kg
