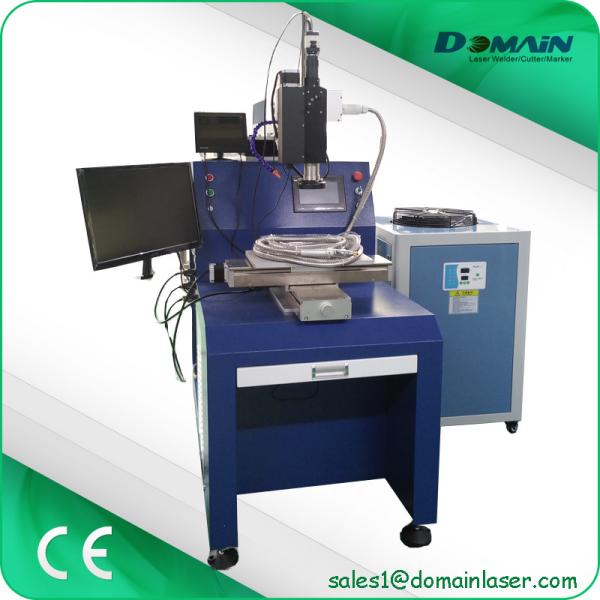

Automated Yag Optical Fiber Cnc Laser Welding Machine 500W 5m Fiber Cable
Automated Yag Optical Fiber Cnc Laser Welding Machine 500W 5m Fiber Cable
Specifications
Brand Name :
DOMAIN LASER
Model Number :
CY-WD500F
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Price :
`
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
7~10 working days
Packaging Details :
plywood case
Product Name :
500W 5m Fiber Cable Laser Welding Machine
Laser Power :
500W
Laser Source :
Nd: YAG pumped by xenon lamp
Pulse Width :
0.2~20ms
Fiber Cable :
5 M
Power Supply :
380V±5%, 50Hz or 60Hz
Description

Automatic Yag Optical Fiber Cnc Laser Welding Machine - 500W 5m Fiber Cable

Introduction

It emits laser by the fiber transmission, welding for workpiece with multi-point or multi-surface.Its laser beam is high quality, welding spot uniform and small,easy to install and move,etc.The fiber transmission can effectively suppress the focal motion of the focused beam caused by the beam mode changes that cause by the thermal lens effect of the laser source.

It effectively improves the quality and stability of welding.The structure design and solid metal outermost cover ensure that this laser system can be used in an online industrial production. And has a better protection for the impact, dust, vibration and temperature widely changes.

The laser source consist of the lens, laser rods and other components.

Feature

Four-axis linkage processing, accurate is and speed is fast

Laser welding software system is Professional

Laser is high quality and imported metal and ceramic laser cavity. Lead screw and guide rails are imported

Blue CCD blue control device will not flash when it work

Water chiller is split type and high purity

Application

This kind of machine is widely used in communications devices , IT ,medical , electronics , batteries tab-lead , fiber-optic coupling devices , CRT electronic gun , metal parts , cell phone vibrating motors , clocks precision parts , automotive sheet steel optical communications industry copper parts , aluminum parts etc precision welding.

Parameter

Model No. CY-WD500F
Laser Power 500W
Laser Source Nd: YAG pumped by xenon lamp
Pulse Width 0.2~20ms
Pulse Frequency 0~100Hz
Laser Welding Depth ≤1mm
Adjusting rang of light spot 0.1-3.0mm
Cooling System 3HP industrial water chiller
Power Supply 380V±5%, 50Hz
Power Consumption 18KW
Single Pulse Energy 120J
Observing System CCD and LCD display, with red pointer
Control System Industrial PC with CNC 2000 software
3-axis Travel Distance

X=300mm,Y=200mm,Z=300mm

(all electrical, precision ±0.02mm)
Data Memorization 100 groups
Illumination LED circle lamps
Language Display English & Chinese
Shield Gas Supply 1line, argon
Running Environment Tem 5°C-30°C, Hum 5%-85%
