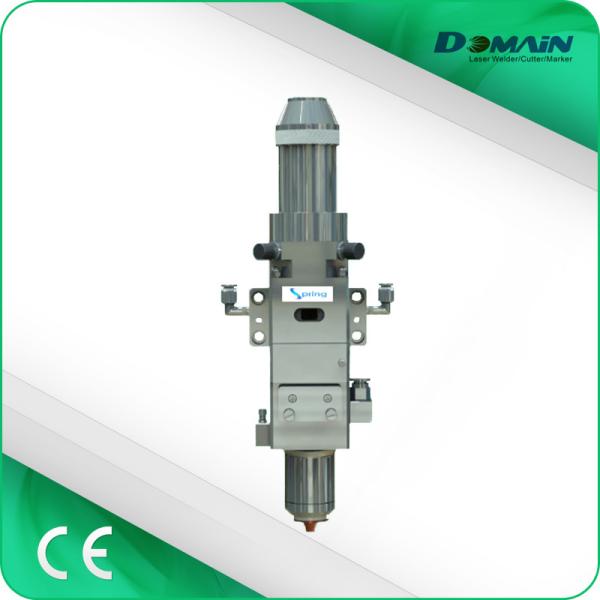

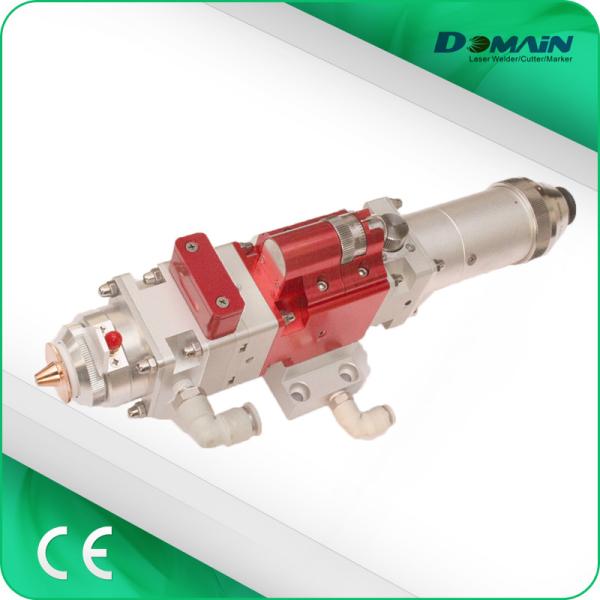

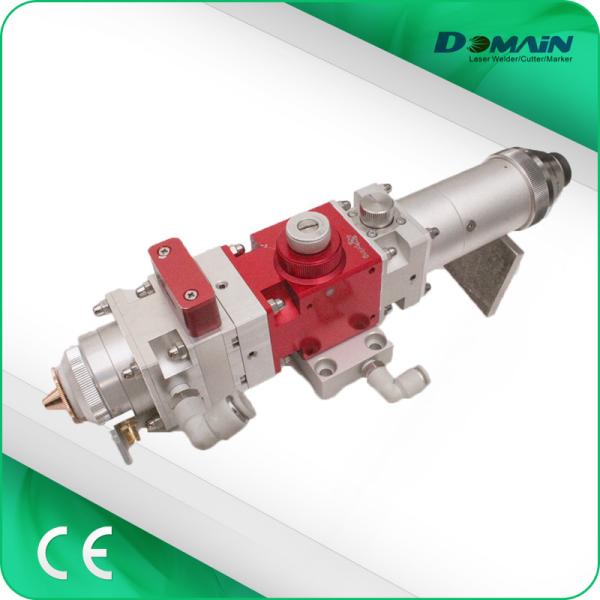

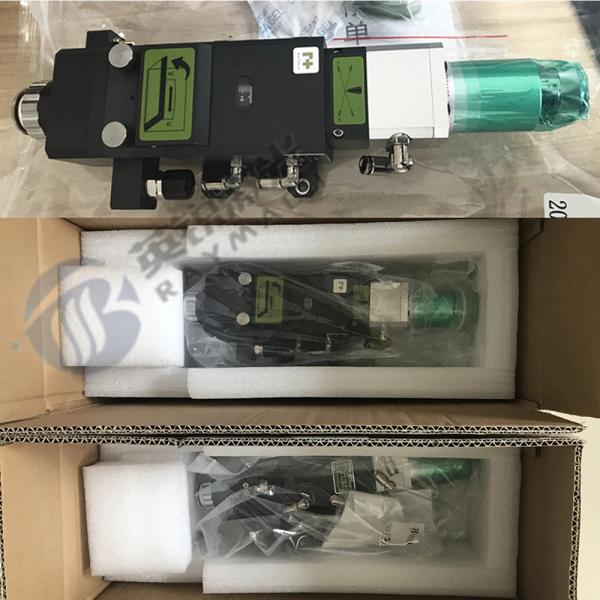

3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
Specifications
Brand Name :
DOMAIN LASER
Model Number :
CY-F04QBH
Certification :
CE FDA ISO
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 per month
Delivery Time :
7~10 working day
Packaging Details :
Paper Carton
Product Name :
Laser Cutting Head
Laser Type :
Fiber Laser
Condition :
New
Connector Tyep :
QBH
Max. gas pressure loading (Mpa) :
3
Applicable machine :
Fiber Laser Cutting Machine
Description

3D Metal Fiber Laser Cutting Machine Laser Machine Parts Automatic Laser Cutting Head

Feature

a. QBH fiber interface, high precise collimating adjusting unit.

b. Adding the observing window, it can observe the focal lens height more convenient and more directly.

c. Electroplated imitating stainless steel surface, having good electrical conductivity, it can strengthen the sensitivity of the height adjustment device.

d. The effective water cooling protection of the focal lens, makes it operating more safety, and highly improves the focal lens lifespan.

e. Adopting the precise trimmer wheel, it makes adjusting light convenient and accurate.

Technical Parameters Description
Model CY-F04QBH
Laser cutting head dimensions (mm) 136*80*85
Max. gas pressure loading (Mpa) 3
Max. water pressure loading (Mpa) 3
Laser cutting head weight (Kg) 2.5
Size of nozzle output light (mm) 0.8-2.0
Laser power suitable 1000W
Diameter of focal lens (mm) 26.8
QBH Collimator size (mm) 61*50*260 (the collimator height can be customized as your requirement)
QBH Collimator weight(Kg) 0.7
QBH Collimator lens adjusting range(mm)

-2 ~ +2

QBH Collimator Connection

 Threaded connection

3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head

3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head

3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head 3D Metal Laser Cutting Machine Parts Automatic Fiber Laser Cutting Head
