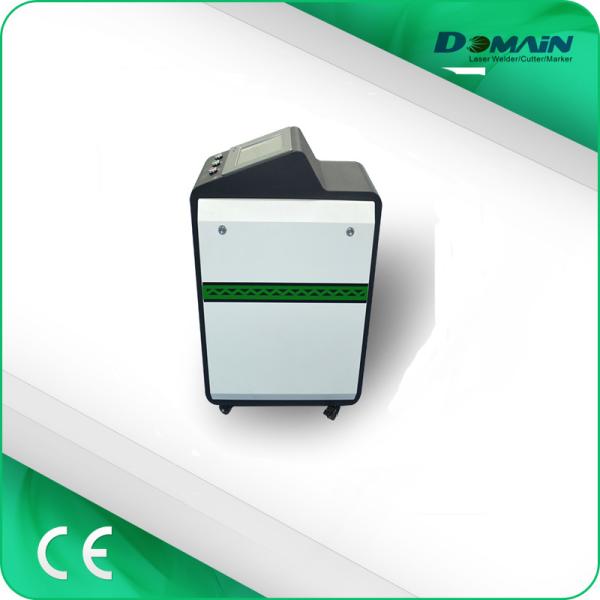

200w 500w 1000w Laser Paint Stripping Machine , Small Laser Cleaning System
200w 500w 1000w Laser Paint Stripping Machine , Small Laser Cleaning System
Specifications
Brand Name :
Domainlaser
Model Number :
CY-100C/CY-20C/CY-50C
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300units/per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Machine type :
laser cleaning machine
After-sales service provided :
Engineers available to service machinery overseas,Video technical support
Fuel :
Laser
Power(w) :
50W/100W/200W/500W
Use :
Burnishing & Degreasing & descaling&stripping
Cleaning process :
Laser cleaning
Dimension(l*w*h) :
760mmX780X790mm
Warranty :
2 Years
Laser power :
50W/100W/200W/500W
Scan width :
10-60mm
Product name :
Laser Cleaning Machine,laser rust removal machine,Laser Cleaning Machine 50w 70w 100w high precision tyre/ car/ glass
Laser wavelength :
1064nm
Working temperature :
5-40℃
Pulse frequency :
20-100KHz
Cooling method :
Air cooling
Feature :
Rust / Corrosion Inhibitor,Critical Cleaning / Residue Free,non-pollution
Description

High Power paint rust removal 200w 500w 1000w laser cleaning machine

(50w 100w 200w 500w optional)

As a green and environmentally friendly cleaning method, laser cleaning technology has the following advantages. Compared with traditional industrial cleaning, it has the following advantages. It has become an emerging laser cleaning technology that has attracted the attention of the automobile manufacturing, electronic processing, mold industry, petrochemical industry and other industries. :

1. No consumables, no chemical pollution, no noise, energy saving;

2. No contact, no grinding, no response, minimal loss to the substrate;

3. It can remove pollutant particles below the nanometer level and has high cleanliness;

4. Optical fiber transmission, movable operation, cleaning parts that are not easy to reach;

5. Simultaneous cleaning and simultaneous processing to achieve zero discharge in the cleaning process

6. Can achieve rapid cleaning of heavy pollutants and high-speed cleaning of light pollutants

Applicable Industries of laser cleaning machine:

Auto Part, Tyre mold, Rubber Mold, High level machine tools, Rail, Metal & Non-metal parts etc

Applicable Materials of laser cleaning machine:

Metal, Plastic, Rubber

Complete paint removal, Cleaning of large molds, Weld seam pre-treatment

• Pre-coating surface preparation / contaminant removal
• Pre-treatment to enhance adhesive bonding, Nuclear de-contamination
• Fast removal of rust/oxides, oil, grease & production residues
• Industrial, military, & shipyard - production intensive de-coating

Product Description
1.Compact and versatile, the cleaning machine are designed for the cost-effective treatment
of small areas that require gentle high precision cleaning, de-coating and other surface treatments.
2.The basic system consists of the laser source, with controls and cooling, a fiber optic for beam delivery and a processing head. A simple main power supply is used for operation with a very low energy demand.
3.NoComplete paint removal, Cleaning of large molds, Weld seam pre-treatment
• Pre-coating surface preparation / contaminant removal
• Pre-treatment to enhance adhesive bonding, Nuclear de-contamination
• Fast removal of rust/oxides, oil, grease & production residues
• Industrial, military, & shipyard - production intensive de-coation

Machine introduction

There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer.

100W Fiber Laser rust removal Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

Features

1. fiber laser high power laser cleaning machine

2. Non-contact cleaning, no damage to the parts matrix.

3. accurate cleaning, can achieve precise location, precise size selective cleaning.

4. do not need any chemical cleaning liquid, no consumables, safe and environmental protection.

5. simple operation, power can be hand-held or with the robot to achieve automated cleaning.

6. cleaning efficiency is very high, save time.

7. Laser cleaning system stability, maintenance-free.

Specifications:

Model CY-C60 CY-C100 CY-C200 CY-C500
Laser source Fiber Fiber Fiber Fiber
Laser Power 60W 100W 200W 500W
Fiber cable L 3 M 3 M 5 M 10M
Pulse Energy 1.5 mJ 1.5 mJ 2 mJ 50 mJ
Wavelength 1060nm 1060nm 1060nm 1060nm
Frequency 50-500KHz 50-200KHz 20-50KHz 10-50KHz
Clean speed ≤5 M²/Hour ≤10 M²/Hour ≤15 M²/Hour ≤50 M²/Hour
Scann speed 0-7000mm/s 0-7000mm/s 0-7000mm/s 0-7000mm/s
Cooling Air cooling Air cooling Air cooling Water cooling
Dimension 450*350*500 650*350*560 900*600*1100 1600*1100*1800
Weight 30Kg 40Kg 120Kg 300Kg
Beam width 10-100mm 10-100mm 10-100mm 10-100mm
Optional Manual Manual Manual Manual
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Voltage Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ Single Phase 220V, 50HZ
