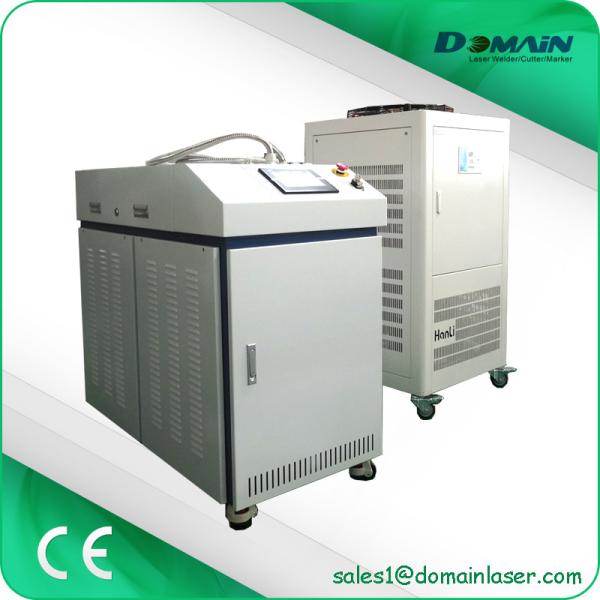

500 Watt Stainless Steel Soldering Machine Fiber Optical Transmission High Speed
500 Watt Stainless Steel Soldering Machine Fiber Optical Transmission High Speed
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WF500
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
7~ 10 working days
Packaging Details :
Plywood case
Product Name :
500w Handheld Fiber Laser Welding Machine
Laser Type :
Nd3+: YAG
Machine Power :
500W
Laser Wavelength :
1064nm
Welding Penetration :
Max 0.6mm
Welding Spot Diameter :
1mm
Cooling System :
3 Hp
Power Consumption :
Host:14KW Chiller: 4KW
Settings Memory :
100 groups
Power Supply :
380V/50Hz (380V/60Hz optional)
Description

500w Handheld Fiber Laser Welding Machine 300W Stainless Steel Laser Soldering Machine With CE

Introduction

Best Laser self developed portable fiber transmission fiber laser welding machine adopt Japan imported technonology which largely change traditional welding method and improve working efficiency.

It's handheld welding head,easy to align welding joint for multidirectional moving. 5 meter long light output cable with large moving range. Can be connected to the robot to achieve six-axis three-link welding which suitable for large work piece welding, irregular work piece welding.

Feature

Use hand-held welding heads to weld the large metal advertising characters, this will overcome the limitations of the workspace.

Moving advertising words to weld small metal advertising word by fixed welding head, it’s easy to operate. The fixed welding head can be rotated universally to overcome the inconvenience of the conventional welding head in one direction rotation.

The hand-held welding head is equipped with five meters of imported optical fiber, which is flexible and convenient for outdoor welding.

The operation mode of the hand-held welding torch can realize the welding of the workpieces at any angle at any angle.

It can do intelligent switching of the double light path, and the time-division splitting energy will be a balanced

distribution

Suitable for all kinds of complex welds, spot welding of various devices.

Application

Widely used in kitchen and bathroom industry, home appliance industry, advertising industry, mold industry, stainless steel door and window industry, handicraft industry, home goods industry, furniture industry, auto parts industry.

Parameter

Model No. WF500
Laser Source Nd3+: YAG Φ8*155
Laser Wavelength 1064nm
Laser Tube Quantity 2 pcs
Pulse Duration 0.2~20ms
Frequency Range 0.1~100Hz
Workable Current 50~300A
Welding Spot Size 0.3~1.2mm
Welding Spot Diameter 1mm
Fiber Cable Length 5 meters(work distance)
Settings Memory 100 groups
Control Panel 7” color LED touch screen
Language Option English/Chinese
Power Supply 380V/50Hz (380V/60Hz optional)
Power Consumption Host:14KW Chiller: 4KW 3HP

Machine Dimensions (L*W*H)

 Host: 1225*600*1230 Chiller: 940*720*1550mm
Applicable Materials Stainless steel, Iron, Galvanized sheet,carbon steel
Material Thickness ≤2.5mm
