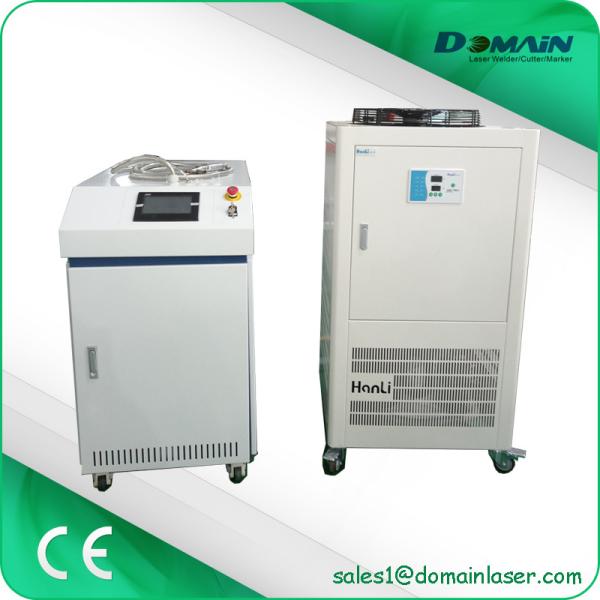

Fiber Transmission Laser Spot Welding Machine With Hand Held Gun 1064nm Wavelength
Fiber Transmission Laser Spot Welding Machine With Hand Held Gun 1064nm Wavelength
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WF600
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
7~ 10 working days
Packaging Details :
Plywood case
Product Name :
Handy Laser Welder For Metal
Laser Type :
Yag Laser
Machine Power :
600W
Laser Wavelength :
1064nm
Welding Spot Size :
0.3~1.2mm
Welding Spot Diameter :
1mm
Fiber Cable Length :
5 meters (15m optional)
Settings Memory :
100 groups
Applicable Materials :
metal sign letter welding
Control Panel :
7’’ color LED touch screen
Description

Fiber Transmission Handy Laser Welder For Metal Hand Held Gun Ce Certificate / Laser Spot Welding Machine

Introduction

This kind of machine is widely used in communications devices, IT, medical , electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts , cell phone vibrating motors , clocks precision parts , automotive sheet steel optical

communications industry copper parts , aluminum parts etc precision welding.

Feature

No undercut/sink of the weld or base metal surrounding the welded area when proper techniques have been used


Minimal heat input to the mold base metal resulting in no or the lowest possible distortion to precision features in close proximity to the weld repair area


Minimal weld metal deposited resulting in minimal machining to restore the part to its original dimensions


Hard, tough resultant weld metal attributable to the fine grain structure of the weld metal, which is a result of the extremely rapid solidification of the laser weld


Extremely precise control of the weld metal location, which allows for welding within a few thousands of an inch of features that are not to be disturbed on the mold


Little to no discoloration of the weld and the surrounding base material

Application

Specially Widely used in kitchen industry, household appliances industry, advertising industry, thin wall material,stainless steel door and window industry, handicraft industry, metal furniture industry.

Laser welding material is mainly metallic material: such as stainless steel, carbon steel, mild steel, galvanized sheet etc.

Parameter

Model No. WF600
Laser Source Nd3+: YAG Φ8*165mm
Laser Wavelength 1064nm
Laser Tube Quantity 2 pcs
Pulse Duration 0.2~20ms
Frequency Range 0.1~100Hz
Workable Current 50~300A
Welding Spot Size 0.3~1.2mm
Welding Spot Diameter 1mm
Welding Penetration Max 0.8mm
Fiber Cable Length 5 meters(work distance)
Settings Memory 100 groups
Control Panel 7’’ color LED touch screen
Language Option English/Chinese
Power Supply 380V/50Hz (380V/60Hz optional)
Power Consumption Host:14KW Chiller: 6KW 5P
Applicable Materials Stainless steel, Iron, Galvanized sheet, carbon steel
Material Thickness ≤3.5mm
Product tags

fiber laser welding machine

,

channel letter laser welding machine

,

nd yag laser welding machine
