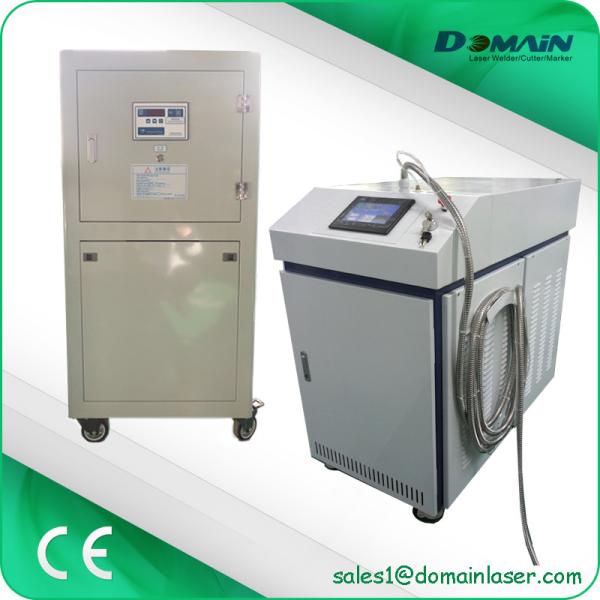

300W Handheld Laser Spot Welding Machine For Steel Tank Fens Metal Frame
300W Handheld Laser Spot Welding Machine For Steel Tank Fens Metal Frame
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WF300
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
7~ 10 working days
Packaging Details :
Plywood case
Product Name :
300W Handheld Laser Spot Welding Machine
Laser Type :
YAG
Machine Power :
300W
Pulse Duration :
0.2~20ms
Welding Spot Size :
0.3~1.2mm
Welding Spot Diameter :
1mm
Cooling System :
1 Hp
Power Consumption :
Host:6KW Chiller: 3KW
Settings Memory :
100 groups
Applicable Materials :
Stainless steel, Iron, Galvanized sheet,carbon steel
Description

300W Handheld Laser Spot Welding Machine For Steel Tank Fens Metal Frame

Introduction

Handheld Laser Welding Machine is widely used in communications devices, IT, medical , electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts , cell phone vibrating motors , clocks precision parts , automotive sheet steel optical communications industry copper parts , aluminum parts etc precision welding.

Feature

The hand-held welding head is equipped with five meters of imported optical fiber, which is flexible and convenient, and can be used for outdoor welding

The operation mode of the hand-held welding torch can realize the welding of any part of the workpiece at any angle

Intelligent switching of dual optical paths, evenly distributed time-divisional energy

Suitable for all kinds of complex welds, spot welding of various devices

Application

Widely used in communications devices, IT, medical, electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts.cell phone vibrating motors, clocks precision parts, automotive sheet steel optical communications industry copper parts, aluminum part precision welding.

Parameter

Model No. WF300
Laser Source Nd3+: YAG Φ7*145
Laser Wavelength 1064nm
Laser Tube Quantity 1 pc
Pulse Duration 0.2~20ms
Frequency Range 0.1~100Hz
Workable Current 50~300A
Welding Spot Size 0.3~1.2mm
Welding Spot Diameter 1mm
Fiber Cable Length 5 meters(work distance)
Settings Memory 100 groups
Control Panel 7” color LED touch screen
Language Option English/Chinese
Power Supply 220V/50Hz (60Hz optional)
Power Consumption Host:6KW Chiller: 3KW 1HP

Machine Dimensions (L*W*H)

 Host: 1225*600*1230mm Chiller: 540*640*1040mm
Applicable Materials Stainless steel, Iron, Galvanized sheet,carbon steel
Material Thickness ≤1.5mm
