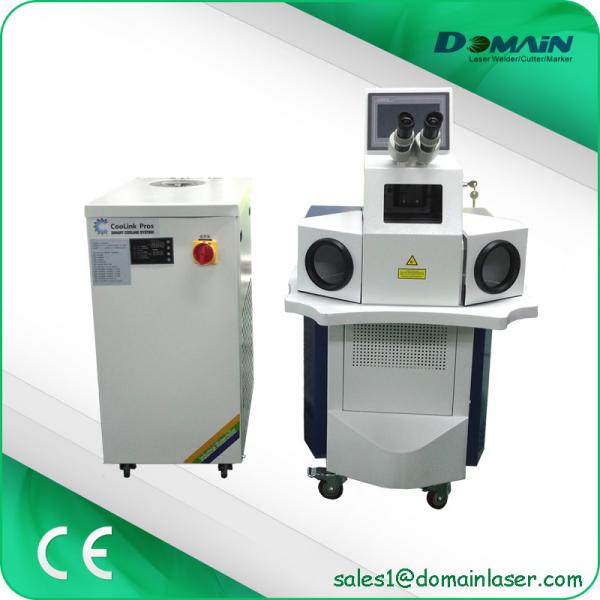

Gold And Silver Jewelry Spot Welding Machine , Cnc Spot Welder With Touch Screen
Gold And Silver Jewelry Spot Welding Machine , Cnc Spot Welder With Touch Screen
Specifications
Brand Name :
Domain Laser
Model Number :
CY-W150
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union
Supply Ability :
70 sets per month
Delivery Time :
5~8 working dasy
Packaging Details :
Plywood case
Product :
Inlaying Jewellery Soldering Welding
Machine Power :
150W
Laser Source :
Yag
Pulse Width :
0~20ms
Single Pulse Energy :
≤40J
Observing System :
10x Microscope
Operation Panel :
Touch Screen
Condition :
New
Description

Gold And Silver Jewelry Hole Repairing Laser Spot Welding Machine For Laser Welding And Inlaying Jewellery Laser Welding Machine

Introduction

Specially designed for the electronics industry and jewelry industry, the introduction of advanced German technology, this series of products with ergonomic design, and the use of international top accessories production, system stability, easy to operate, can be used for gold and silver jewelry electronic components to fill holes, point Welding sand holes, welding inserts, etc.

Feature

High single-pulse energy with long lifetime U.K. laser cavity.

High effieciency YAG crystal to ensure the best beam quality and energy.

Design for Feeling and safety operation.

Stable laser power supply to ensure continuous 24hours.

Variety of configuration options according to your needs.

Application & Material

Spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelry and small accessories. Also widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc.

Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, watches, military.

Parameter

Model No. CY-W150
Laser Power 150W
Laser Source Pulsed Nd: YAG
Pulse Width ≤20ms
Pulse Frequency ≤50Hz
Single Pulse Energy 40J
Beam Diameter 0.1-3.0mm
Cooling System Water Cooling
Power Supply single phase 220V±10%, 50Hz/60HZ
Power Consumption 5KW
Observing System Microscope
Data Memorization 100 groups
Chamber Illumination LED circle lamps
Language Display Chinese/English
Shield Gas Supply One line quick connection
Running Environment Tem 5°C-30°C, Hum 5%-85%
