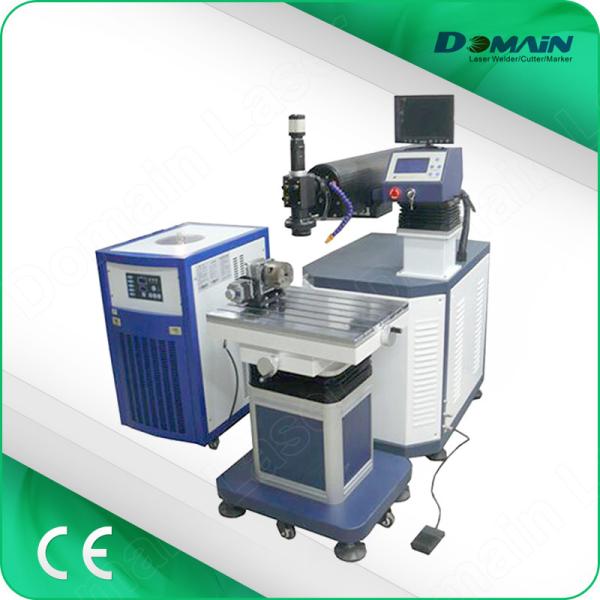

0.1-50Hz 500w Automatic Laser Spot Welding Machine For Glasses Frames Molds
0.1-50Hz 500w Automatic Laser Spot Welding Machine For Glasses Frames Molds
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WY300
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T, Western Union
Supply Ability :
70 sets per month
Delivery Time :
5~8 working dasy
Packaging Details :
Plywood case
Product :
Gold Laser Welding Machine
Machine Power :
300W
Laser Source :
Pulsed Nd:YAG
Pulse Frequency :
0.1-50Hz
Cooling System :
1P water chiller
Power Supply :
220V50Hz
Welding pool diameter :
0.3-1mm
Description

OEM 300w 500w automatic gold jewelry spot Laser welding machine for glasses frames molds

Introduction

This is fiber optical laser welding system, the high power laser beam delivery by an optical fiber, so it's ensure to do the long distance welding, the laser focus head is light weight, easy to operate, A flexible mobile arm with straight or turn and tiltable processing head and variable focus range of up to 300mm allow welding in any position whatever, even in deep cavity and holes. Even complex work piece geometries can be handled in an ergonomic working position due to the optional 360 degree swivel lens set of the laser focusing head.

Feature

Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.

Most advanced light shielding system can eliminate the irritation to eyes by laser during working.

The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward

The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator

The work bench can be lifted, and moved in three dimensions.

Size of light spot can be adjusted accordingly and automatically.

Application & Material

Laser mold welding machine is mainly used for the repairing of precision plastic molds and suitable for the repair welding of different types of mold steel. In addition, it also can be used for the welding of all sorts of small and precision metal parts (K gold, Platinum, Titanium, Silver, Copper Nickel, Aluminum, Magnesium, Stainless steel, etc.), featuring firm welding joints and smoothly welding lines.

Parameter

Laser power 300W 400W 500W
Laser Source Pulsed Nd:YAG
Pulse Width 0.3-20ms
Pulse Frequency 0.1-50Hz
Beam Diameter 0.1-3.0mm
Filler Wire Diameter Max 0.6mm Max 0.8mm Max 1.0 mm
Cooling System 1P water chiller 2P water chiller 3P water chiller
Power Supply

220V50Hz

(60Hz optional)

380V/50Hz

(60Hz optional)

380V/50Hz

(60Hz optional)
Power Consumption 9KW 14KW 16KW
Observing System Microscope 10X
3 axis of table X=250mm, Y=100mm, Z=200mm, XY manual, Z electrical
Data Memorization 100 groups
Illumination LED ring lights
Language Display English & Chinese
Shield Gas Supply One line quick connection (argon)
