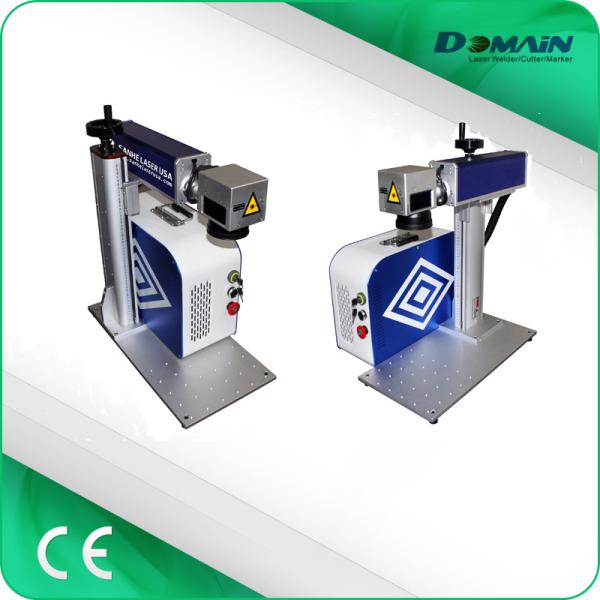

laser marker 20W 30W 50W cnc handheld portable mini color fiber laser metal marking
laser marker 20W 30W 50W cnc handheld portable mini color fiber laser metal marking
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability :
100Units/Per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Voltage :
220V
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Marking Depth :
O.1-1mm
Marking Speed :
0-7000mm/s
Applicable Material :
Metal, plastic marking
Control system :
PC Control
Key Selling Points :
Multifunctional
Control Software :
Ezcad
CNC or Not :
Yes
Application :
Laser Marking
Product name :
Fiber Optical Laser Marking Machine
Description

Laser marker 20W 30W 50W cnc handheld portable mini color fiber laser metal marking

Machine features

1. CY-MF- series fiber laser marking machine has perfect marking performance and compact structure, different design and power suitable for your different markingrequest. High quality laser generator help stable laser output, imported scanner keep your high accuracy and speed marking. The fiber marking system ensures superior marking performances, which is especially for small parts marking such as screws, needles etc.

2. Updating to 3th-generation laser marking machine.
3. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
4. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
5. High speed 2-3 times over than traditional diode pumped marking machine.
6. Air-cooling smart machine size.
7. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%.
8. Color marking.

1. Adopt optical fiber solid laser, high beam quality, long life, save electricity and energy saving, lower cost.

2. Adopts advanced computer control system, the software function is very powerful.

3. The software can be compatible with CorelDraw, AutoCAD, Photoshop etc..

4. Suitable material: metal, metal oxide material, laser marking EP materials .ABS plastic etc, printing ink
and paint process.

5.Application industries: Metal parts manufacturer, Auto spare parts, Digital products parts, communication
products, sanitary ware, electronics, jewelry, glasses and watches, medical equipment and other industries.

Application Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical

appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks,

jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating

materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other

materials.appliances, communication products, sanitary ware, tools,accessories, knives, eyeglasses and

clocks, jewelry, auto parts, luggage buckle, cooking utensils,stainless steel products and other industries.

Applicable

The fiber laser is designed to provide highly effcient marking and engraving for a wide-range of industries.

Here are a few examples:

- Automotive parts

- Telecom apparatus

- Electronic Parts

- Plastic key button

- Jewelry

- Instruments

- Sanitary ware

Parameters

Model
CY-M20F
Fiber laser type
Pulse fiber laser 30w
Max Single pulse energy
1mj
Pulse duration
90-130ns
Laser beam quality M2
<1.8
Frequency
30-60khz
Wavelength
1064nm
Marking Area
110mm×110mm(optional)
Spot size
27.5μm
Max marking speed
8μrad
Min. linear width
0.01mm
Min. Character size:
0.2mm
Repetition Accuracy
0.005mm
Control program
Genuine EZCAD control system Compatible with win7/8/10
Graphic format supported
Jpg,Bmp,dxf,plt
working voltage:
AC220V 50HZ/AC110V 60HZ
Cooling type
Air cooling
Operating parameter
0-40℃
Power consumption
≦500w
Packing size
48*70*85cm
Gross weight
50kg
