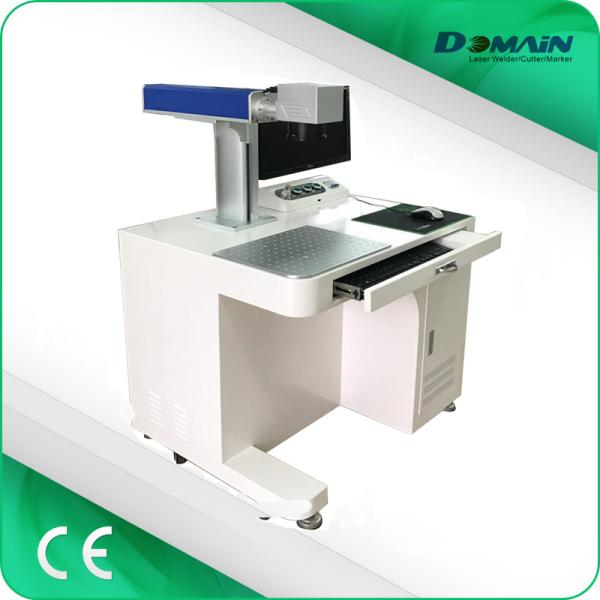

Raycus fiber laser marker 20w 30w 50w mopa fiber laser marking machine for plastic bottle/ jewelry/metal
Raycus fiber laser marker 20w 30w 50w mopa fiber laser marking machine for plastic bottle/ jewelry/metal
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Units/Per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Description

Raycus fiber laser marker 20w 30w 50w mopa fiber laser marking machine for plastic bottle/ jewelry/metal

Product Description

Raycus fiber laser marker 20w 30w 50w mopa fiber laser marking machine for plastic bottle/ jewelry/metal

Mope Fiber Laser Maker, is equipped with a special Mope fiber laser source, that has all the functions that normal fiber laser markers have. And it has an extra special function that other normal fiber laser marking engraving machines don’t have. Special to mark black color on the Anodized aluminum metal material .

Adopts the imported fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model 30W Fiber Laser Marking boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. Furthermore Fiber Laser Marking Machine also enjoys the advantages of easy operation, low running cost, long-term trouble –free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production

Applicable Materials:

Fiber Laser Marking Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.

Applicable Industry:

This series Fiber Laser Marker widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.

Advantages

1.High Durability,low consumption,due to the all air-cooled design.

2.No consumable and free of maintenance,it saves energy with total power below of 0.5kw.

3.Long lifetime,laser source working lifetime is more than 100000 hours.

4.High pilse repeating rate and stable power bring high speed laser marking.

5.Adopt Germany,America imported main parts.

Model
CY-M20F
CY-M30F
CY-M50F
Work Area (mm)
110x110 or 200x200mm
Laser Power
MOPA20W
MOPA 30W
MOPA 60W
Full Power Repetition Range
31KHz – 2000KHz
Pulse Repetition Rate Range
1KHz – 2000KHz
Output Beam Diameter
6±0.5mm
Beam Quality M2
<1.8
Min Line Width
0.01mm
Min Character
0.15mm
Marking Speed
≤8000mm/s
Marking Depth
≤0.4mm
Repeat Precision
±0.002mm
Power Supply
220V(±10%)/50Hz/4A
Gross Power
<500W
Laser Module Life
100000h
Cooling Style
Air Cooling
System Composition
Control System, Industrial Computer, Working Table
Working Environment
Clean and Dust Free
Operating Temperature
10℃-35℃
Humidity
5% to 75% (Free of Condensed Water)
Power
AC220V, 50HZ, 10Amp Stable Voltage
Warranty
12 Months
Dimension (cm)
80 x 56 x 80
Weight (kg)
150
