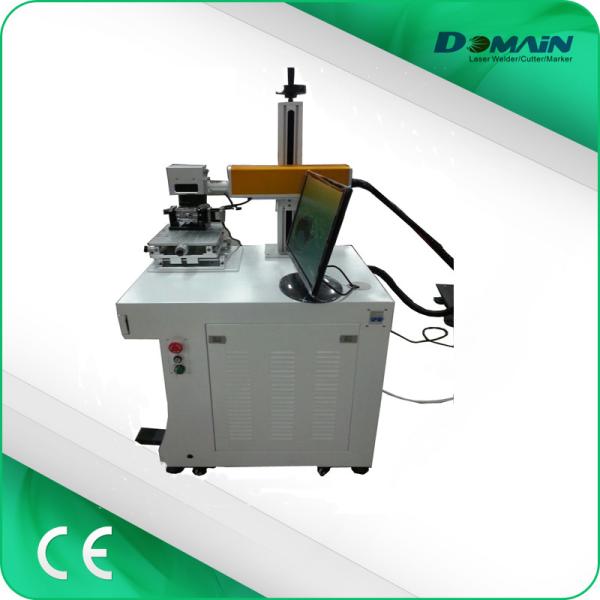

30W Fiber Laser Marking Machine Price and Metal Copper Aluminum Steel and Plastic Laser Marker
30W Fiber Laser Marking Machine Price and Metal Copper Aluminum Steel and Plastic Laser Marker
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Units/Per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Condition :
New
Pulse frequency :
50/60 HZ
Color :
Customized Color
Accessories :
mask
OEM :
Yes
Wavelength :
1064nm
Factory :
Yes
Laser type :
Fiber
Usge :
Metal marking
resolution :
0.001mm
Modulation Frequency :
20kHz~80kHz
key words :
Fiber laser marker
Marking speed :
7000mm/s
produce name :
30W fiber laser marking machine price cheap
Description

30W Fiber Laser Marking Machine Price and Metal Copper Aluminum Steel and Plastic Laser Marker

Machine configuration

#Table size: 200x300mm

#Marking area: 110x110mm/ 145x145mm/175x175mm, etc

#Laser power: Fiber laser power supplier and fiber laser generator 20W/30W/50W, etc
#Table: Aluminum alloy and up-down table

#Red point

#Cooling system: air constant temperature cooling system

#Field Lens: Imported from Singapore wave length technology company

#Galvanometric scanning system from BEIJING JCZ TECHNOLOGY CO.,LTD

#Control system: PC control system

#EZCAD card board and software Original from BEIJING JCZ TECHNOLOGY CO.,LTD that in favor of all-English language, Chinese, Japanese and Korean.

#2 years warranty. The machine with main parts shall be changed free of charge when if any problem during the warranty period.

Characteristics of fiber laser marking machine:

1 30W fiber laser marking machine is a new generation of laser marking system
2 Adopted the world's most advanced laser technology, which has good beam quality and high precision marking results.
3 Compact size, high speed, high repeat positioning accuracy
4 Life span up to 100,000 hours, can move with any workplace.
5 Zero maintenance,No consumables, low-power, power consumption is less than 500W

Technical Parameters

Laser parameters optical laser Raycus laser or IPG
Laser wavelength 1064nm
Average output power 30W
Modulation frequency range 20kHz~80kHz
Galvo parameters Marking speed 7000mm/s
resolution 0.001mm
Repositioning precision 0.003mm
Cooling system Cooling way Air cooling
Laser power supply 0.5KW/AC220V/50Hz
Manual working table stroke Movements itinerary 285 mm (desktop type)
Environmental 0 ~ 35 C, 90% or humidity
Optical output characteristics Marking range F = 160 mm, range 110 x 110 mm
Minimum line width 0.01mm
Minimum height of characters 0.2mm

Application Industry:

Sanitary ware, food packaging, tobacco marking, beer marking, drinks marking, pharmaceutical packaging,

medical devices, eyeglasses and clocks, auto spare parts, plastic sheet materials, electronic hardware

Application Material:

1 Sheet metal fabrication 2 Electrical cabinet
3 Elevator 4 Automotive parts
5 Aviation & aerospace 6 Lighting lamps
7 Metal carfts & decoration 8 Hardware tools
9 Advertising 10 Furnitures
11 Kitchenware equipment 12 Fitness equipment
13 Medical equipment 14 Agricultural and forestry machinery
