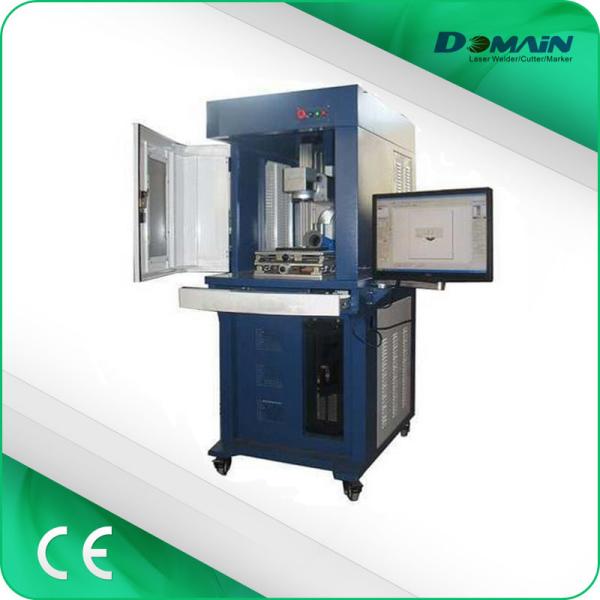

Floor Type Full-closed Cover 20W Fiber Laser Marking Machine
Floor Type Full-closed Cover 20W Fiber Laser Marking Machine
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500units/per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Control software :
JCZ Software
Application :
Laser Marking
Condition :
New
Cnc or not :
Yes
Warranty :
2 Years
Graphic format supported :
BMP
Cooling mode :
Air Cooling
Marking depth :
≤0.5mm(Determined by material)
Marking speed :
≤7000mm/s
Laser power :
20W 30W 50W
Product name :
Fiber laser marking machine
After-sales service provided :
Engineers available to service machinery overseas
Power supply :
220V/single/50Hz/8A/220V/single/50Hz/10A/220V/single/50Hz/20A
Laser source :
Raycus Laser Source
Marking area :
70mm*70mm 110mm*110mm 160mm*160mm 300mm*300mm
Working accuracy :
0.01mm
Description





Floor Type Full-closed Cover 20W Fiber Laser Marking Machine

Product Description

CCD fiber laser marking machine is professional for mark signs or letters on metal and some nonmetal materials.

Equiped with camera positioning system and five million high-definition cameras, high positioning accuracy.

Low power, the consumption power is less than 500w

Small volume, light weight,high speed

Greatly reduce the depreciation cost, satisfying customers' high quality laser process need

Technical Parameter

Model CY-MF20
Laser power 20W/30W
Wave lengh 1060nm
Standard marking scope 120*120mm
Repeated accuracy ±0.01mm
Consumpation power ≤500W
Power supply 220V/50Hz/10A
Cooling mode Air cooling
Option Rotary or disk device

Applicable Industry

CCD fiber laser marking machine is applied in gold & silver jewelry,two-dimensional code mark, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware, auto accessories, electronic hardware industries.

Applicable materials:

Gold & silver, stainless steel, ceramics, plastic,and so on, auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic harsware marking business.

Main parts

1.The laser marker machine use protect cover on the machine which can protect the user from the hurt when working.
Laser Marker Machine

2.The laser marker machine use 30W raycus laser source,great stability and long lifespan.

Laser Marker Machine
3.The laser marker machine use high quality lens, narrow laser beam, less work materials consumption, small heat affected zone.
Laser Marker Machine
4.The laser marker machine use high speed galvo,it has a rapid processing speed which is 2-3 times than that of the traditional marking machine.

5.The optional part:rotary axis ,you can add it on the machine when you want to mark cylindrical materials.

Laser Marker Machine
6.It does not need any maintenance and has a long lifetime and small volume, and it is specially suitable for the bad environment.
Laser Marker Machine


Product tags

10w fiber laser marking machine

,

mini fiber laser marking machine

,

optical fiber laser marking machine
