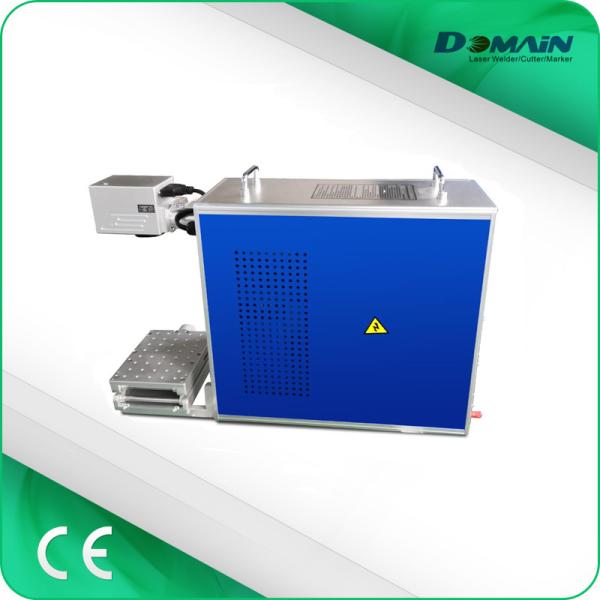

Portable 20W Industrial Laser Marking Machine Mini type Raycus Laser Source
Portable 20W Industrial Laser Marking Machine Mini type Raycus Laser Source
Portable 20W Industrial Laser Marking Machine Mini type Raycus Laser Source
Portable 20W Industrial Laser Marking Machine Mini type Raycus Laser Source
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100Units/Per month
Delivery Time :
3-5 working days
Packaging Details :
Wooden Package
Control software :
EZCARD V2.7 version
Application :
Laser Marking
Condition :
New
Cnc or not :
Yes
Warranty :
2 Years
Graphic format supported :
BMP,AI,PLT,DXF,DST
Cooling mode :
Air Cooling
Marking depth :
≤0.5mm(Determined by material)
Marking speed :
≤7000mm/s
Laser wavelength :
1064nm
Product name :
Industrial Flying Fiber Laser Marking Machine for PE Pipe printing
Applicable material :
steel
Minimum character :
0.15mm
Laser source :
Raycus Laser Source
Working accuracy :
0.01mm
Description

Desktop 20W Fiber Laser Marking Tool / Portable Mini Fiber Laser Marker

Desktop 20W Fiber Laser Marking Tool / Portable Mini Fiber Laser Marker
1) Genuine EzCad software.
2) Raycus Fiber laser source offer 3 years Warranty.
3) High quality laser beam. The diameter of focal spot not over 20μm.
4) High speed marking. Special laser head for High-speed scanning.
5) Low consumption.
6) Long lifetime without maintenance. More than 100000 working life.
7) Small size suit for harsh working environment.
8) Fast processing speed. High precision.

Main parts

High speed digital scanning galvanometer

system

It adopt the imported high-speed galvanometer scanning head,greatly reduced the time delay and improved the marking speed. The speed is 3-10 times of first generation YAG and second generation semiconductor marking machine.

Lens from Singapore,1064nm f=254mm, highest light transmission make sure no power reduction

Up-down controller and clear Ruler,easy to adjust the up-down system to find correct focus distance

Switch and Key

UP&Down lift
Fans

Cool down machine to protect it and make sure long time working

Working table Made up by precision alloy and imported precise beeline device.X axis adjustable range 160 mm,Y axis adjustable range 500 mm,Flexibility mesa have multiple screw holes,convenient and custom installation ,special fixture industry platform.
The best quality Wuhan Raycus fiber laser generator , Raycus brand laser source has a normal working life of 100,000 hours. The industry's best quality fiber optic manufacturer, microfiber beam 0.001mm; the laser's overall 3-year warranty

Option

Can be used for different cylindrical, spherical objects to rotate the marker axis. The stepping motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.

Metal laser engraving machine portable Fiber laser marking machine can make which materials?

Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc

SPECIFICATIONS
Working size of Fiber marking machine
110x110mm--200*200mm
Fiber control system
Raycus
Laser Head
Sino-Galvo SG7110
Fiber power
20W(Optional 30W/50W)
cooling way
Air cooling
Worktable adjustment range
0-450mm
Computer operating system
WindowXP/Window7/W8/W10
Support graphical format
Support AI,PLT, DXF, BMP,JPG file, etc
Optical wavelength
1064nm
Marking speed
0-7000mm/s
Marking thickness
0-1mm
Minimum line width
0.015mm
Minimum character
0.01mm
Operating voltage
AC220V 10%/50Hz-60Hz, AC110V (optional)
Software
EZCAD
