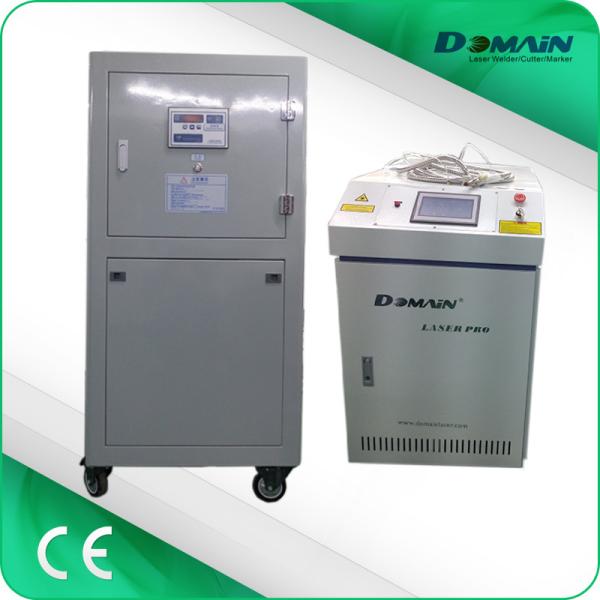

Special Outdoor Handheld Laser Welding Machine For Mold Industry 1064nm
Special Outdoor Handheld Laser Welding Machine For Mold Industry 1064nm
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WF500
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
7~ 10 working days
Packaging Details :
Plywood case
Product Name :
500W Handheld Laser Welding Machine
Laser Type :
Nd: Yag Laser
Laser Wavelength :
1064nm
Pulse Duration :
0.2~20ms
Welding Spot Diameter :
1mm
Fiber Cable Length :
5 meters(work distance)
Warranty :
1 year
Description

Portable / Handheld Laser Welding Machine / Special Outdoor Laser Welder / Mold Industry Laser

Introduction

Laser welding is a new type welding technology, mainly on thin materials and precision components, applies high energy pulse to heat a specific tiny area of certain materials. It can achieve spot weld, butt weld, stitch weld, seal weld. Its advantages are high positional accuracy, being easy to realize robotization.

Feature

Split chiller automatic refrigeration according to the system set temperature to ensure safe operation of equipment

8-inch color LCD touch screen control system, laser energy closed-loop feedback control of laser power

To avoid the xenon lamp aging effect on the laser power, is more stable than the output current feedback device

By internal flexible optical combination, it achieves time-division energy-division multiple stations

Simultaneously welding, the beam quality of fiber optic transmission is better

Light spot is thin and energy distribution is uniform,solder joints uniform size, consistent depth

Application

Widely used in communications devices, IT, medical, electronics, batteries tab-lead, fiber-optic coupling devices, CRT electronic gun, metal parts.cell phone vibrating motors, clocks precision parts, automotive sheet steel optical communications industry copper parts, aluminum partsetc precision welding.

Parameter

Model No. WF500
Laser Source Nd3+: YAG Φ8*155
Laser Wavelength 1064nm
Laser Tube Quantity 2 pcs
Pulse Duration 0.2~20ms
Frequency Range 0.1~100Hz
Workable Current 50~300A
Welding Spot Size 0.3~1.2mm
Welding Spot Diameter 1mm
Fiber Cable Length 5 meters(work distance)
Settings Memory 100 groups
Control Panel 7” color LED touch screen
Language Option English/Chinese
Power Supply 380V/50Hz (380V/60Hz optional)
Power Consumption Host:14KW Chiller: 4KW 3HP

Machine Dimensions (L*W*H)

 Host: 1225*600*1230 Chiller: 940*720*1550mm
Applicable Materials Stainless steel, Iron, Galvanized sheet,carbon steel
Material Thickness ≤2.5mm
