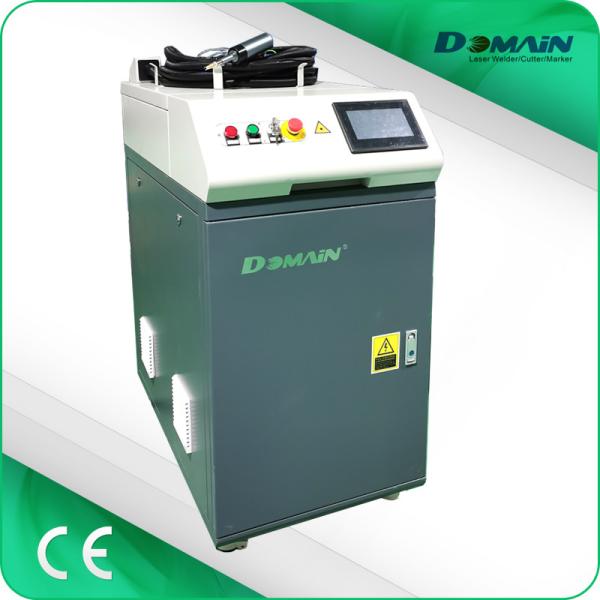

Wobble Head 1000W Handheld Laser Welding Machine / Cast Iron Welding Machine
Wobble Head 1000W Handheld Laser Welding Machine / Cast Iron Welding Machine
Specifications
Brand Name :
Domain Laser
Model Number :
CY-WF1000
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per months
Delivery Time :
7~10 working days
Packaging Details :
plywood case
Product Name :
Handheld Laser Welding Machine
Machine power :
1000W
Condition :
New
Laser Source :
Fiber Laser
Wavelength :
1080nm
Pulse Width :
0.1~2.0
Optical Head :
QBH
Operating Voltage :
220V 50Hz(60Hz optional)
Max. Power Consumption :
5 Kw
Cooling Method :
Water Cooling
Fiber Length :
10m
Warranty :
2 years
Description

Wobble Head 1000W Handheld Fiber Optic Laser Stainless Steel Aluminum Iron Metals

Introduction

Handheld laser welding machine is adopting fiber laser source, which assure high quality output beam and stable output power. It's a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.

One of the highlights of the machine is inbuilt water chiller, it saves much machine’s space, and easy to move the machine.

Portable handheld welding head make the welding more flexible, solves the limit of fixed welding head.

Feature

Smart internal design and interactive control system expan the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming


Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation


With multiple safety alarms, it auto locks light after removing the work piece, which is safe


No maintenance and less consumables

This head could be equipped with a variety of angular nozzles to meet the welding needs of different products

Application

Used in welding of aluminum, copper, zinc, gold, silver and other alloys and alloys, steel and other alloy materials, automotive parts industry: engine cylinder head gasket; hydraulic tappet seal welding; filter seal welding; spark plug welding; Valve push rod welding; anti-collision airbag electric detonator seal welding; crankshaft or cylinder liner heat treatment.

Parameter

Parameters Unit CY-WF1000
Machine Power / 1000W
Central Emission Wavelength nm 1080
Welding Penetration Depth mm ＜3
Max. Modulation Frequency kHz 10
Adjustable Spot Size mm 0.1~2.0
Output Power Tunability % 10-100
Output Power Stability % ± 2 (＞1000 h)
Beam Quality M2 ＜ 1.3
Optical Head / QBH
Operating Voltage V 220V 50Hz(60Hz optional)
Max. Power Consumption Kw 5
Cooling Method / Water Cooling
Output Fiber Delivery Length m 10
Control Interface / LED Touch Screen
Working Temperature ℃ 0-40
