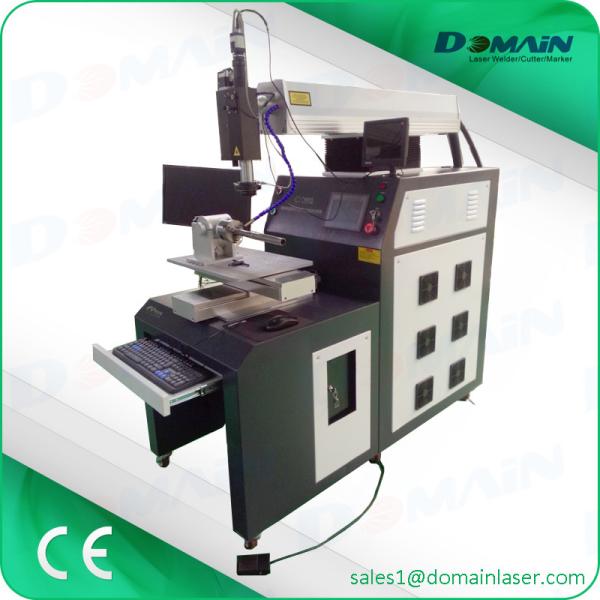

300W Automatic Stainless Steel Spot Welding Machine 0.2~20ms Pulse Width
300W Automatic Stainless Steel Spot Welding Machine 0.2~20ms Pulse Width
Specifications
Brand Name :
DOMAIN LASER
Model Number :
CY-WD300
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 pc
Price :
`
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 sets per month
Delivery Time :
7~10 working days
Packaging Details :
plywood case
Product Name :
CNC Laser Soldering Machine
Laser Power :
300W
Pulse Width :
0.2~20ms
Single Pulse Energy :
90J
Power Consumption :
9KW
Running Environment :
Tem 5°C-30°C, Hum 5%-85%
Description

300W Automatic Spot Welding Stainless Steel Laser Tube Welding Machine / Yag Laser Welding Machine

Introduction

Laser Welding Machine is special for the Teapot and similar products welding application. It was controlled by the computer completely and welding speed is very fast and high precision.

Feature

High production efficiency and high welding speed, realizing automatic mass production on the production line

Point, line, circle, elliptical arc,square and other arbitrary planar orbit can be welded easily

Stable performance, high power, easy for maintaining

Quick and good quality welding without pollution, efficient and environmental

Fine, smooth and pretty welding spot without post-welding processing

Application

Automatic laser welding machine is used for stainless steel shell and metal spectacle frame, as well as welding of metal materials such as hardware industry, relay, sensor and electronic components weld spot, straight line, circle, arc, square and other profile welding.

Parameter

Model No. CY-WD300
Laser Power 300W
Laser Source Nd: YAG pumped by xenon lamp
Pulse Width 0.2~20ms
Pulse Frequency 0~100Hz
Laser Welding Depth ≤0.6mm
Adjusting rang of light spot 0.1-3.0mm
Cooling System 1HP industrial water chiller
Power Supply 220V±5%,50Hz, 60Hz
Power Consumption 9KW
Single Pulse Energy 90J
Observing System CCD and LCD display, with red pointer
Control System Industrial PC with CNC 2000 software
3-axis Travel Distance

X=300mm,Y=200mm,Z=300mm

(all electrical, precision ±0.02mm)
Data Memorization 100 groups
Illumination LED circle lamps
Language Display English & Chinese
Shield Gas Supply 1line, argon
Running Environment Tem 5°C-30°C, Hum 5%-85%
