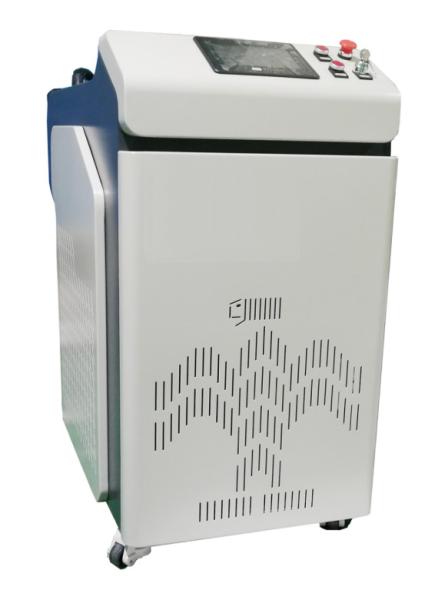

1070nm Portable Metal Industrial Laser Welding Machines 1000 Watt 1500 Watt
1070nm Portable Metal Industrial Laser Welding Machines 1000 Watt 1500 Watt
1070nm Portable Metal Industrial Laser Welding Machines 1000 Watt 1500 Watt
1070nm Portable Metal Industrial Laser Welding Machines 1000 Watt 1500 Watt
Specifications
Brand Name :
Domainlaser
Model Number :
CY-W1000FS/CY-W1500FS
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200units/per month
Delivery Time :
3-5 working days
Packaging Details :
Wodden packages
Voltage :
220V/380V
Factory :
Yes
OEM :
Yes
Wavelength :
1070nm
Key word :
Fiber handheld laser welder
Application :
0.1-4mm
Laser type :
Fiber laser welder
Applicable industry :
Building material shops, manufacturing plant, funiture, kitchen, hotes and etc
Max. output power :
2kw
Cooling mode :
Built-in cooling
Laser brand :
Raycus/IPG
Usage :
Metal welding
Welding penetration :
3-4mm
Description

1000watt 1500watt Fiber Portable Laser Welder Metal Industrial Laser Welding Machine

The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

Application

Widely used in cabinet kitchen and bathroom, stair elevator, shelf, oven, tainless steel door, and window guardrall distribution box, stainless steel home.
1. The weld seam is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.
2. Wobble welding head compensates for the small disadvantage of laser welding spot, expands the tolerance rande of the machined pats and weld width, and obtains better weld formation.
3. The welding workpiece has no deformation, no welding, and the welding is firm.
4. Laser welding consumes less material and has a long life.
5. Safer and more environmentally friendly.
6. The welding speed is 2-10 times faster than the traditional welding. One machine can save at least 2 welders a year.
7. The operation is simple, and it is possible to get on the job without a job certificate and the beautiful product can be welded without teacher.

Functions&Features

1) The welding speed is 2-10 times faster than the traditional welding speed.
2) Laser welding consumes less material and has a long-life.
3) Easy to operate.
4) The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
5) No deformation, no weld scar, welding firmly.
6) Safer and more environmentally friendly.

7)Wobble welding head compensates for the small disadvantage of laser welding spot, expands the tolerance rande of the machined pats and weld width, and obtains better weld formation.

8)The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Comparing with other welding

Comparison project
Traditional welding
Laser welding
LaserPower new generation laser welding
Heat input to the workpiece
Very high
Low
Low
Deformation of the workpiece, undercut
Big
Small
Small
Bond strength to base metal
General
Good
Very good
Follow up treatment
Polishing
No need to polishing or rarely polished
No need to polishing or rarely polished
Welding speed
General
More than 2 times argonarc welding
More than 2 times argonarc welding
Applicable material
Stainless Steel, Carbon steel, Galvanized sheet
Stainless Steel, Carbon steel, Galvanized sheet
Stainless Steel, Carbon steel, Galvanized sheet
Consumables
More consumables
Less consumables
Less consumables
Operation defficult
Complicacy
General
Simple
Operator safety
Unsafety
Safety
Safety
Environmental protection imp act
Not environmentally friendly
Environmentally friendly
Environmentally friendly
Welding fault tolerance
Good
Bad
Good
Swing welding
No
No
Yes
Spot width adjustable
No
No
Yes
Welding quality comparison
Bad
General
Good

Details

1. Different welding of non-standard metal parts, manual welding is more flexible;
2. Perfect welding quality, small deformation high penetration depth, no weld penetration.
3. A variety of welding processes, spot welding, seam welding welding, etc.
4. High welding efficency, replacing traditional TIG welding equipment.
5. The largest welding enifit cost, no consumables energysaving and environmental protection.

Main parameter

Laser power CY-W1000FS
Center wavelength 1070nm
Output power stability <2%
Laser frequency 50Hz-5KHz
Adjustable power range 5-95%
Beam quality 1.1
Optimal operating environment Temperature 10-35 ° C, humidity 20% -80%
Electricity demand AC220V
Output fiber length 15m
Cooling method Water Cooling
Dimensions 93*60*88cm
Weight 200kg
Cooling water temperature 20-25 ° C

Average power

 2000/4000W
