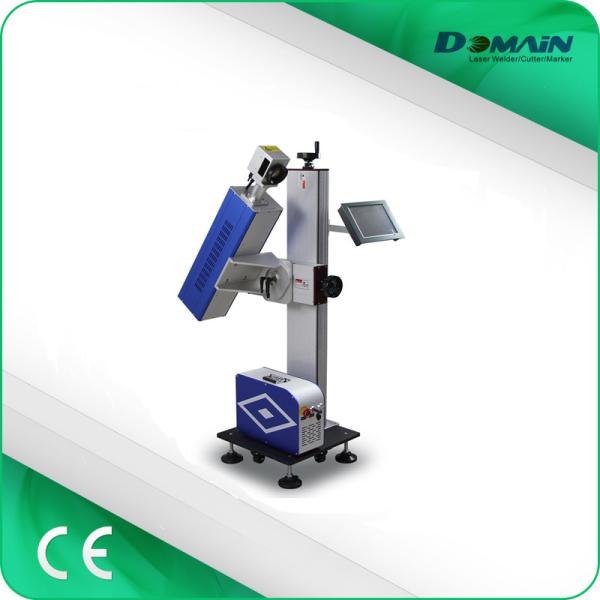

30W Co2 flying laser marking machine laser marker for plastic and metal pipe and fittings
30W Co2 flying laser marking machine laser marker for plastic and metal pipe and fittings
Specifications
Brand Name :
Domainlaser
Model Number :
CY-M20F/CY-M30F/CY-M50F
Certification :
CE&FDA
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, Western Union, Western Union, MoneyGram
Supply Ability :
500units/per month
Delivery Time :
3-5 working days
Packaging Details :
Wooden Package
Control software :
JCZ Software
Application :
Metal and non-metal marking
Condition :
New
Warranty :
2 Years
Graphic format supported :
BMP,AI,DXF,DST
Cooling mode :
Air Cooling
Key Selling Points :
Easy to Operate,hige efficiency,eco-friendly
Applicable :
Industry
Product name :
CO2 flying laser marking machine
Working Accuracy :
±0.01mm, 0.01mm
Description

30W Co2 flying laser marking machine laser marker for plastic and metal pipe and fittings

Fiber CO2 UV online flying laser marker /CO2 flying laser marking machine

This type of marking is mainly used for continuous manufacturing processes where any standstills of the manufacturing plants would be uneconomical.

The highest demands on precision and speed of the marking laser. On the one hand, the laser machine must be designed for continuous industrial use. On the other hand, laser marking requires a specific software that takes the speed of the work pieces into account in order to ensure distortion-free marking.

Our marking lasers have been designed for continuous industrial operation and come with a sophisticated laser software to ensure distortion-free results when marking-on-the-fly. Moreover, our laser machines and the software have been designed for integration into existing plants and processes.

This laser markers are developed for efficient laser marking of metals and plastics along the industrial production chain. They offer the perfect combination of intelligent software with highest quality hardware.

It is available in different sizes with various configurations to meet individual requirements. Additionally, a broad range of options to customize your laser marking system is available.

Thanks to their thoughtful and robust design our laser markers guarantee absolute reliability and precision even in demanding environments. The galvo laser head is practically maintenance free.

Advantages

Advanced processing mode, a high degree of precision
Easy product identification.
Environment-friendly.
Low cost, fully automatic, easy operation.
Permanent & long lasting.

Application industry
Soft-drinks packaging industry.
Food packaging industry.
Alcohol packaging industry.
Medicine packaging industry.
Tobacco packaging industry.

Parameters

CO2-F30 CO2-F55
Wavelength 10.55μm~10.63μm 10.55μm~10.63μm
Continuous power output(1) >30W ≥55W
Power stability <±5% <±5%
Pattern of laserspot >98% TEM00 >98% TEM00
LaserSpot size(2) 1.8±0.2mm 1.8±0.2mm
Beam divergence angle(3) 7.5±0.5mrad 7.5±0.5mrad
Laser spot quality M2<1.2 M2<1.2
Degree of polarization >100:1 >100:1
External modulation signal TTL Signal, frequency<25kHz TTLSignal, frequency<25kHz
Cooling mode Air cooling water-cooling
Laser weight 5.2kg TBD
Voltage 48VDC<±2%,Noise / fluctuation P-P value<1%supply voltage 48VDC<±2%,Noise / fluctuation P-P value<1%supply voltage
Power current ≤12A(4) ≤25A(5)
Thermal load produced ≤600W ≤600W
Cooling water velocity N/A ≥5.7L/min
Cooling water temperature N/A 15℃~30℃
Hardness of cooling water N/A <150mg/L
ambient temperature 5℃~40℃ 5℃~40℃
Working altitude 2000m 2000m
Ambient humidity Non condensation Non condensation
Preionization time 42S Non

(1)When the laser head temperature is higher than 25 degrees, the laser power decreases by 1%

when the temperature rises 1 degrees.

(2)the diameter of the aperture at the exit of the 1/e2.

(3)beam divergence angle.(4)The typical value is 10A

(5)The peak current is 35Aand the duration is 1ms
