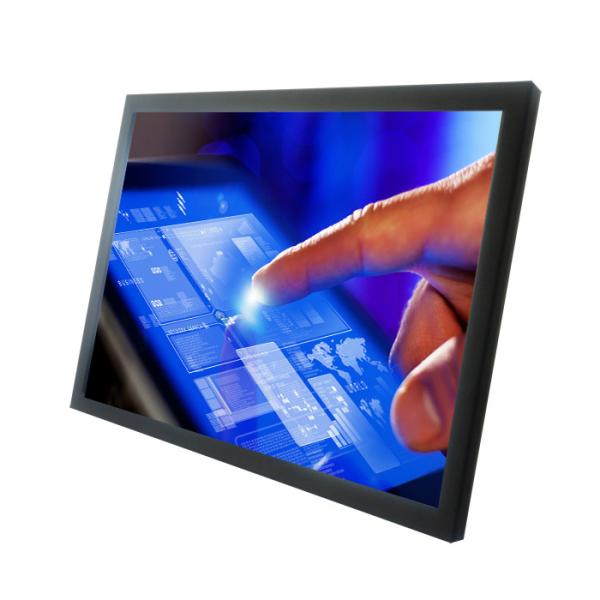

17 Industrial Touch Panel PC DC 12V 1280x1024 With Rugged Steel Housing
17 Industrial Touch Panel PC DC 12V 1280x1024 With Rugged Steel Housing
17 Industrial Touch Panel PC DC 12V 1280x1024 With Rugged Steel Housing
17 Industrial Touch Panel PC DC 12V 1280x1024 With Rugged Steel Housing
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD17PPCT1LJ1
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-15 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
CPU :
Intel J1900/i3/i5/i7/Android
Active are :
337.92(H)×270.34(V) mm
Screen Diagonal :
17"
Operating Temperature :
-10~60℃(-20~70℃ optional)
Operating Humidity :
10%-90% (Non Condensing)
Touchscreen :
Resistive, PCAP
Power input :
DC 12V
Resolution :
1280x1024
View Angels :
85/85/80/80
Connector :
HDMI/VGA/DVI,USB,RS232,LAN,AUDIO,MIC
Description

17" industrial PC with resistive pcap IR touchsceen rugged steel housing

Specifications:

Chassis Panel PC
Model Name ITD17PPCG1L**
IP Rating IP65 Front Panel Optional

PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel
Screen Diagonal (Inch) 17”
Display Active Screen Size (cm) 337.92(H)×270.34(V)
Aspect Ratio 4:3
Physical Resolution 1280×1024
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel
Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation
Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 42.5W

Order Information

17”Chassis Panel PC with Resistive Touch, J1900 ITD17PPCT1LJ1
17”Chassis Panel PC with PCAP Touch, J1900 ITD17PPCT5LJ1
17”Chassis Panel PC with IR Touch, J1900 ITD17PPCT2LJ1
17”Chassis Panel PC with Tempered Glass, J1900 ITD17PPCG1LJ1
17”Chassis Panel PC with Resistive Touch, i5 ITD17PPCT1LI5
17”Chassis Panel PC with PCAP Touch, i5 ITD17PPCT5LI5
17”Chassis Panel PC with IR Touch, i5 ITD17PPCT2LJ1
17”Chassis Panel PC with Tempered Glass, i5 ITD17PPCG1LI5

ITD industrial touch panel PC-based HMIs offers many benefits including: cost reduction, a lightweight frame, high dimensional stability, superior corrosion resistance, improved mechanical properties, high thermal and electrical conductivity, and the ability to retain strength at high temperatures.

APPLICATION

17
