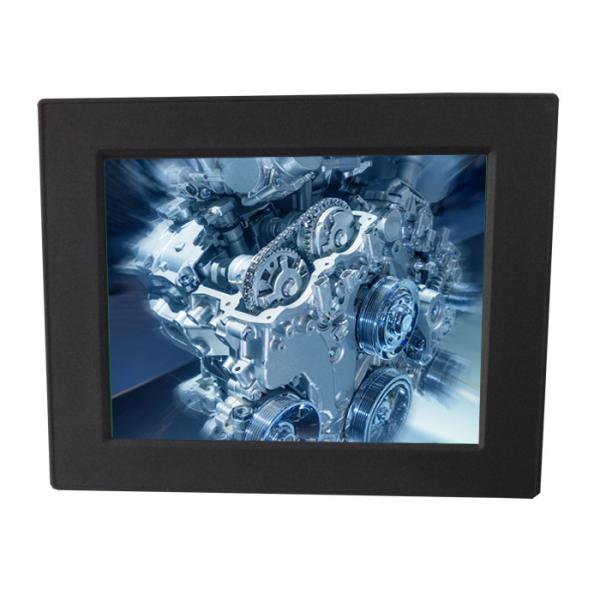

10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD10PMT101
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-15 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Housing Material :
Steel Chassis, aluminum front bezel
Color :
Black or Silver
Operating Temperature :
-10~60℃(-20~70℃ optional)
Operating Humidity :
10%-90% (Non Condensing)
24/7/365 Use :
Supported
Resolution :
1024*768
Brightness :
300
View angles :
80/80/70/70
Description

10.4 inch IP65 front industrial panel mount touchscreen LCD monitor display for industrial use,kiosk

ITD provides industrial grade Panel mount LCD Monitors that are designed and built to withstand the effects of rugged harsh environments typically encountered in industrial and commercial related applications. Our rugged panel mount monitors are available with a wide range of touchscreen technologies, which include, resistive and capacitive.

BENEFITES

- Industrial Grade LCD Panel

- Long-Life Advanced LED Backlighting, over 100,000 Hours Half-Life

- In-Plane Switching (IPS) Technology optional

- Wide Operational Temperature Range -20° to 70°C

- High Environmental Performance and Reliability

- Multitude of Computer & Video Inputs Combinations Available

Touch Screen Technologies Available

- Heat treated aluminum alloy

- Engineered, Produced, and Supported in the China

Panel Mount LCD Monitor
Model Name ITD10PMN101
IP Rating N/A

LCD Panel
Screen Diagonal (Inch) 10.4
Display Active Screen Size (cm) 210.4(H)×157.8(V)
Aspect Ratio 4:3
Physical Resolution 800×600 or 1024×768
Maximum Resolution Supported 1920×1080
Colors 16.2M
Brightness (cd/m²) 300
Contrast Ratio 600:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel
Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

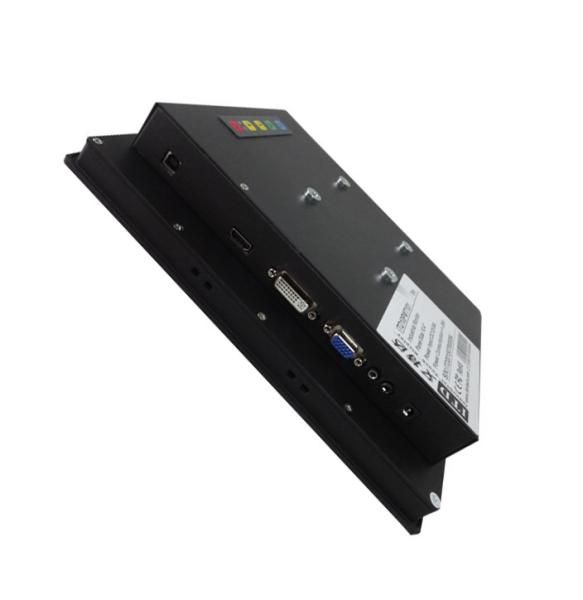

Input / Output
Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation
Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 17.5W

Order Information

10.4”Panel Mount LCD Monitor with Resistive Touch ITD10PMT101
10.4”Panel Mount LCD Monitor with IR Touch ITD10PMT201
10.4”Panel Mount LCD Monitor with SAW Touch ITD10PMT301
10.4”Panel Mount LCD Monitor with PCAP Touch ITD10PMT501
10.4”Panel Mount LCD Monitor with Tempered Glass ITD10PMG101

APPLICATION

10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
OUR FACTORY
10.4 Inch IP65 Industrial Panel Mount Monitor 300nits With Aluminum Front Bezel
