5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
5.7-84 LCD Panel Kits LCD Touch Screen Kit Dual LVDS Interface Output
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD-LCDKITS
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-15 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Sizes Options :
5.7''6.5''7''8''8.4''9.7''10.1''10.4''12.1''13.3''15''15.6''17''17.3''18.5''19''21.5''22''24''27''32''43''49''55''65''70''75''84''
MTBF :
50000Hours
Operating Temperature :
-10~60℃(-20~70℃ optional)
Operating Humidity :
10%-90% (Non Condensing)
24/7/365 Use :
Supported
Input options :
BNC, AV, DP RS232, S-Video, TV
Description

5.7"~84" LCD panel Kits VGA, DVI, HDMI inputs LVDS interface

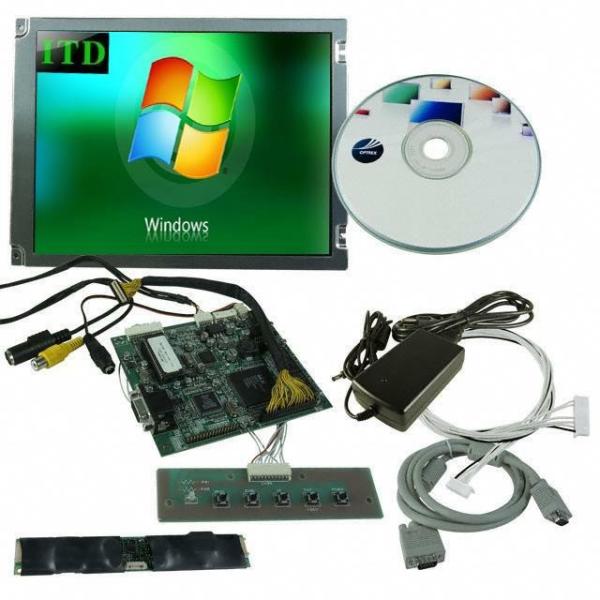

If you are searching for a cheapest solution for kiosk, gaming, ATM, or other equipments, then we would like to recommend you to consider LCD kits solutions. It’s the same as monitor but without metal frame. For some countries, it should be easier for Customs clearance. The LCD kits include TFT panel, AD board, inverter or LED driver, OSD menu, power supply, LVDS cable or all other related cables.

FEATURES

. ●Dual LVDS Interface Output.

. ● On-Screen Display Control.

. ● Support Various Panel From VGA to WXGA.

. ● RGB Input Maximum Resolution 1920×1200 (WXGA) @ 75Hz.

●. Automatic Mode Detection.

. ● Automatic Input Source Detection.

. ● Auto Adjustment For Frequency, Phase, H/V Position, and White Balance.

. ● Build-in Stereo Audio Device.

. ● Flexible Firmware Design to Meet Any Custom Design Request.

● 6-key / 5-key OSD (used more in VGA/DVI) control, content includes Brightness, Contrast Ratio, Phase, Clock, Pictureposition, OSD Position, OSD Language, Color Temperature, Volume, Factory Reset, etc.

. ● DVI Input Maximum Resolution 1366×768 (WXGA) @ 60Hz.

. ● Operating Temperature : -20~ + 80℃

. ● Storage Temperature : -30 ~ + 80℃

5.7

5.75.7
