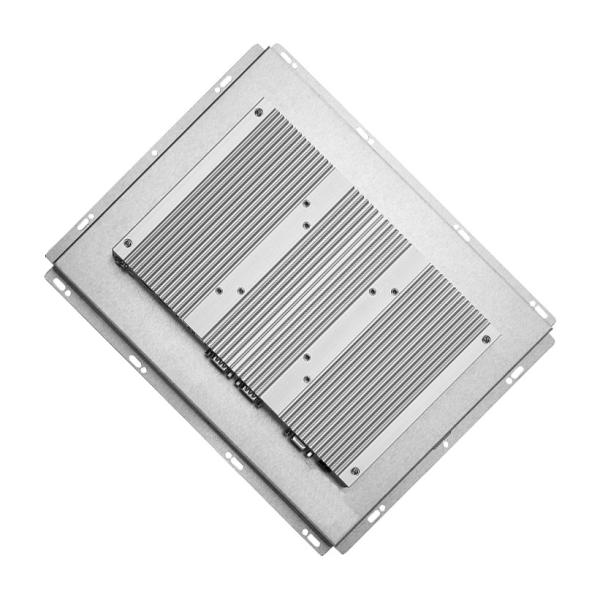

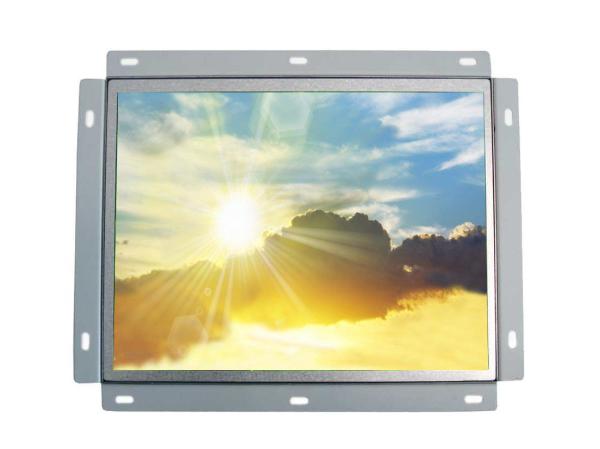

1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime
1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime
1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime
1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD19PPCT1HBFJ1
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000PCS/Month
Delivery Time :
15-20 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
Housing Type :
open frame Mount, VESA Mounting
NAME :
Industrial IP65 Waterproof Panel PC
Operating Temperature :
-10~60℃(-20~70℃ optional)
Operating Humidity :
10%-90% (Non Condensing)
24/7/365 Use :
Supported
Brightness :
1000nits
CPU :
J1900,1037U,I3,I5,I7
Resolution :
1280*1024
Description

1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime

ITD high brightness IP65 panel touch computer features a wide operating temperature range for greater reliability in harsh environments which are common in marine applications. Either in on-shore and off-shore applications, it offers superior display as it is equipped with a dimmable sunlight readable feature. Moreover, there's an optional touchscreen capability for interactive applications. It also supports various I/O ports for flexible connectivity.

BENEFITES OF Industrial IP65 Waterproof Panel PC

- 19" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)

- High-Luminance Solid-State LED-enhanced Backlighting

- 4GB, Max.8G System Memory

- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel

- Energy Efficient, Low Power Consumption

- High Environmental Performance and Reliability

- SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)

- Wide Operational Temperature Range, -10°C to +60°C

Open Frame High Brightness Panel PC
Model Name ITD19PPCG1HBF**
IP Rating N/A

PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® NM10 Express Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel
Screen Diagonal (Inch/cm) 19”
Display Active Screen Size (mm) 376.32(H)X301.06(V)
Aspect Ratio 4:3
Physical Resolution 1280X1024
Maximum Resolution Supported 1920X1080
Colors 16.7M
Brightness (cd/m²) 1000(1500 Optional)
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel
Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation
Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 45W

Order Information

19”1000nits Open Frame Panel PC with Resistive Touch, J1900 ITD19PPCT1HBFJ1
19”1000nits Open Frame Panel PC with PCAP Touch, J1900 ITD19PPCT5HBFJ1
19”1000nits Open Frame Panel PC with IR Touch, J1900 ITD19PPCT2HBFJ1
19”1000nits Open Frame Panel PC with Tempered Glass, J1900 ITD19PPCG1HBFJ1
19”1000nits Open Frame Panel PC with Resistive Touch, i5 ITD19PPCT1HBFI5
19”1000nits Open Frame Panel PC with PCAP Touch, i5 ITD19PPCT5HBFI5
19”1000nits Open Frame Panel PC with IR Touch, i5 ITD19PPCT2HBFJ1
19”1000nits Open Frame Panel PC with Tempered Glass, i5 ITD19PPCG1HBFI5

APPLICATION
1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime

OUR FACTORY
1280*1024 Waterproof Panel PC Industrial IP65 50000 Hours Long Lifetime
