Specifications
Brand Name :
ITD/OEM
Model Number :
ITD07PPCT1HBJ2
Certification :
CE, FCC, RoHS Compliance
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T
Delivery Time :
15~20 business days
CPU :
Intel® Celeron J1900 2.0GHz Processor
Color :
16.7M
Connectivity :
Wi-Fi, Bluetooth
Active Area/Pixel Pitch :
153(H) x 90 (V)/ 0.15(H)mm
Memory :
2GB, 4GB optional
Resolution :
1024 x 600
Size :
7-inch
Touchscreen :
Yes
Description

Steel Housing Panel Mounted Industrial High Bright Grade Touch Panel PC 7 InchSteel Housing Panel Mounted Industrial High Bright Grade Touch Panel PC 7 InchSteel Housing Panel Mounted Industrial High Bright Grade Touch Panel PC 7 Inch

Product Description:

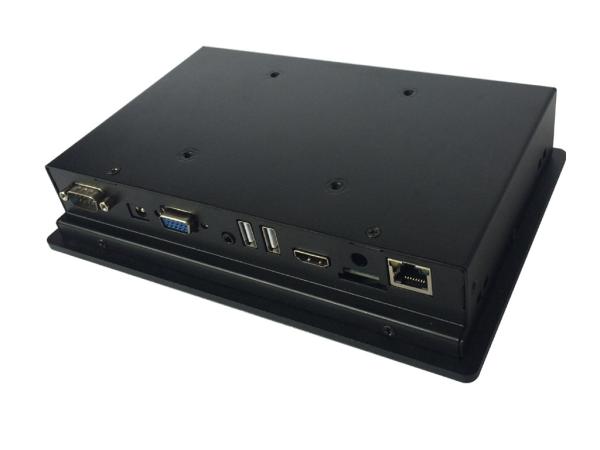

ITD 7” ITD07PPCT1HBJ2 is panel mount high bright touch PC provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

Key Features:Optional:

▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

▪ Energy-efficient and fan-less HMI Systems

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ Flexible, easy configuration and integration

▪ CE, FCC, RoHS Compliance

Optional:

•Anti-Glare / Anti-Reflective tempered glass

•SDD 64GB,128GB up to 521GB

•HDD 500GB up to 1TB

•Touch optional: Resistive, IR, PCAP

•Optical bonding

•DC24V, DC 9-36V

Specification:

System CPU Intel® Celeron J1900 2.0GHz Processor
Memory 2GB, 4GB optional
Chipset Inter Valley View SSA-Cunit
HDD 320GB SATA or 32GB SSD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 2 x COM
USB Ports 4 X USB
HDMI Port 1 X HDMI
VGA Port 1 x VGA
LPT Slot N/A
Audio MIC-IN, LINE-OUT
Panel Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 7” 4:3
Active Area/Pixel Pitch 153(H) x 90 (V)/ 0.15(H)mm
Native Resolution/Colors 1024 x 600 /16.7M
Brightness/Contrast 1000nits/800:1
Viewing Angle(Typical) 80/80/80/80
Synchronization Range Horizontal/Vertical 31.5~60.0KHz/60~75Hz
