OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel
OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD19PMT5HBHX32
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T
Supply Ability :
10000 pcs per month
Delivery Time :
15 working days
Resolution :
1820 x 1024
Screen size :
15",17",19",15.6"
Brightness :
1000nits,1500nits
Response time :
5ms
Products status :
Stock
Pixel pitch :
0.294×0.294
Panel type :
TFT-LCD panel
Warranty :
1 Year for TFT panels; 2 Years for others.
Viewing angle :
85/85/80/80
Description

OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel

The ITD 19 inch high brightness Flat bezel panel mount LCD High-performance touch screen display industrial monitor

GENERAL

Article 19” High Bright Flat Bezel Panel Mount LCD Monitor
IP IP65(for front panel only)

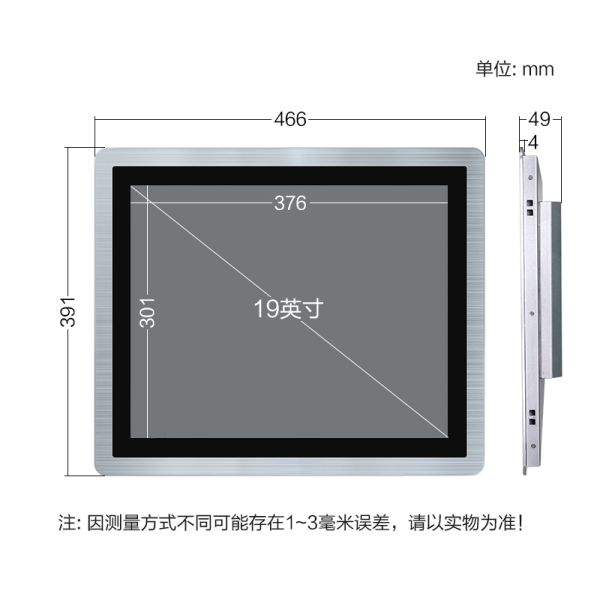

Cut-Out Dimensions 434.5×383.5mm
Aluminum Front Bezel Thickness 3mm (6mm, 10mm optional)
Weight(N.W/G.W) 6.6Kg / 7.8Kg (Approx.)
LCD Type 19＂Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1280×1024@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input optional
Power Consumption 33W
Mount Interface 1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps
Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC, CE, RoHS Certified

LCD Specification

Active Area(mm) 376.32(H) x301.06(V)
Resolution 1280×1024
Pixel Pitch(mm) 0.294×0.294
Nominal Input Voltage VDD +5V(Typ)
Viewing angle (L/R/T/B) 85°/85°/80°/80°
Contrast 1000:1
Luminance(cd/m2) 1000 (1500 optional)
Response Time(Rising/Falling) 3.6s/1.4s
Support Color 16.7M

External AC Power Adapter

Output 12V DC/4A
Input 150-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel PanelOEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel PanelOEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel

OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel PanelOEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel


OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel
