10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD101KITT5xxxx
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-7 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
Screen Diagonal (Inch) :
10.1"
Display Active Screen Size :
216.96(W)X135.6(H) mm
Aspect ratio :
16:10
Resolution :
1280x800 (1920×1200 optional)
brightness :
350 cd/m2 (1000 cd/m2 optional)
Contrast Ratio :
800:1
View Angels :
85/85/85/85
touch panel :
Projected Capacitive Touch
Description

10.1" lcd touch screen kits TFT-LCD pcap multi touch screen with USB interface

SPECIFICATIONS of 17.3" 10.1" lcd touch screen kits

10.1 inch LCD Touchscreen Kit
Model Name ITD101KITT5xxxx
IP Rating Front IP65

LCD Pane
Screen Diagonal (Inch) 10.1”
Display Active Screen Size (mm) 216.96(W)×135.6(H)
Aspect Ratio 16:10
Physical Resolution 1280×800 (1920×1200 optional)
Maximum Resolution Supported 1920×1200
Colors 16.7M
Brightness (cd/m2) 350 cd/m2 (1000 cd/m2 optional)
Response Time 25ms
Contrast Ratio 800:1
View Angels 85/85/85/85
Backlight/Backlight Lifetime LED Backlight with 30000Hours’Lifetime

Touch Panel
Touch Technology Projected Capacitive Touch
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Touch Life 50,000,000times/click
Surface Hardness 7H
Surface Treatment Anti-Glare, Anti-Reflective, Anti-Finger optional
Glass Strengthening Chemically Strengthened

AD Board(optional)
Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation
Operating Temperature Range -20~70°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power
Power Input DC 12V, DC9~36V input optional
Power Consumption 8W

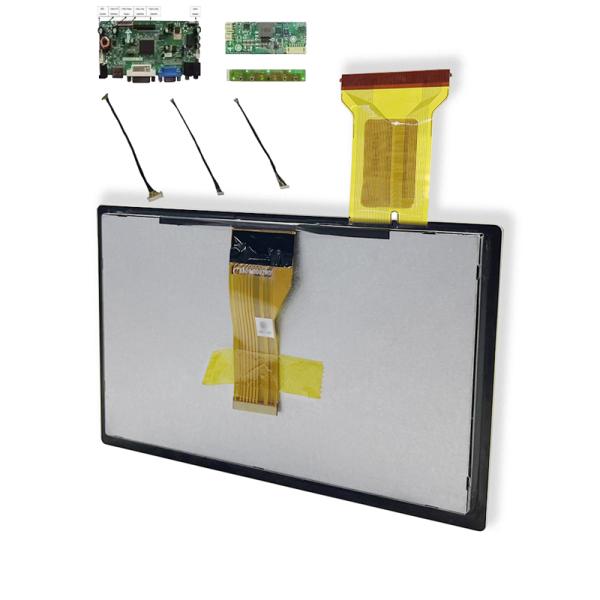

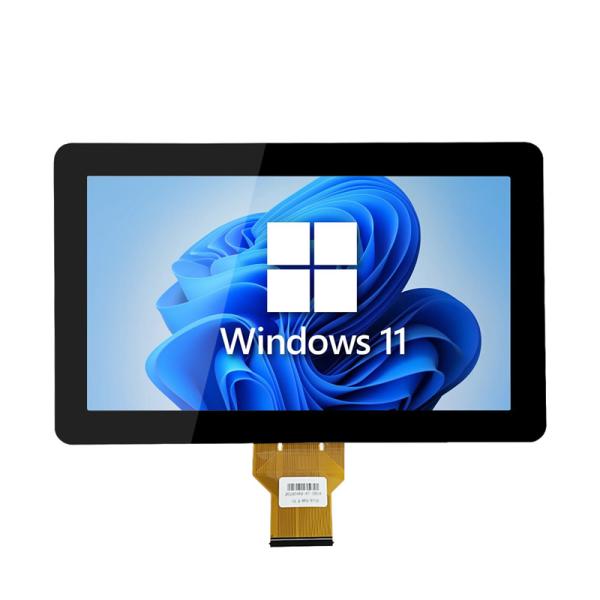

Product image:

10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface

10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
10.1'' LCD Touch Screen Kits TFT-LCD Pcap Multi Touch Screen With USB Interface
