15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD15PPCT5IPSxx
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000 unit per month
Delivery Time :
15-20 working days
Packaging Details :
Foam,gift box,master carton,wooden case,pallet
CPU :
Intel J1900, Intel i3/i5/i7 up to 10th gen.
Material :
Stainless steel housing
Screen Diagonal :
15"
Physical Resolution :
1024X768
View angels :
80/80/80/80
Backlife :
LED backlight with 50000 hours’lifetime
RAM :
4G RAM, max. 32G
IP Rate :
Full IP65 IP66
Touch screen :
resistive touch screen or PCAP touch
Storage :
64G SSD, max. 1TB
Price :
TBA
Description

15 inch IP65 panel PC stainless steel 316 saltwater resistance for food industry

The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

FEATURES

•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Intel J1900, Intel i3/i5/i7 up to 19th gen.
•316 stainless steel, saltwater resistance
•RFID/NFC/QR/Finger reader optional
•CE, FCC, RoHS Compliance

Specifications

OPTIONALS

• DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
• Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy

DISPLAY

PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio15”/4:3
Active Area/ Pixel Pitch304.13(W) x 228.10(H)mm/0.297 × 0.297mm
Native Resolution/ Colors1024 x 768/16.2M
Brightness/ Contrast250cd/㎡/700:1
Response Time/ Viewing Angle(Typical)30ms/80/80/60/80
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)

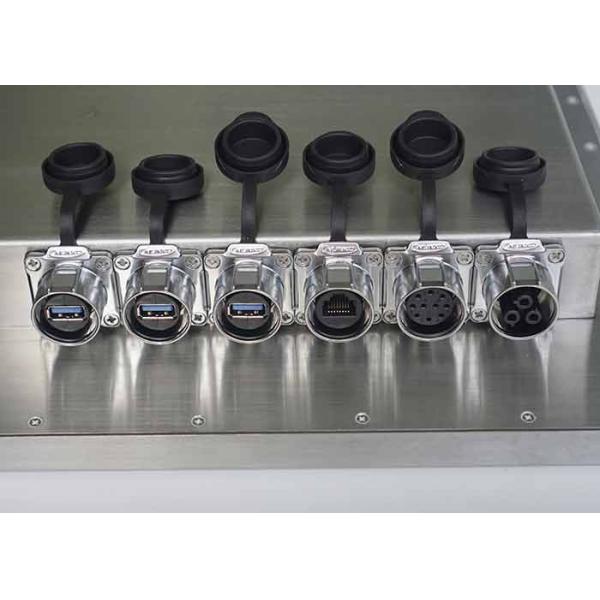

Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving20-50W
Environment ConsiderationsOperating Temperature-10~60℃(-20~70℃ optional)
Storage Temperature-20~70℃
MountingVESA Mount, Panel/Embedded Mount optional
Order Information15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD15PPCG1IP*E1
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD15PPCT1IP*E1
15” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD15PPCT5IP*E1
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD15PPCG1IP*J1
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD15PPCT1IP*J1
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD15PPCT5IP*J1
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD15PPCG1IP*I3
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD15PPCT1IP*I3
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD15PPCT5IP*I3
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD15PPCG1IP*I5
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD15PPCT1IP*I5
15” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD15PPCT5IP*I5

Product Display

15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry15 Inch 50W 1024X768 SS316L Rugged Panel PC For Food Industry
