43 Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen
43 Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen
43 Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen
43 Pure Flat LCD Industrial Touch Screen Monitor IP65 NEMA 4 Capacitive Touch Screen
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD43OFT5K1
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-7 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
Input :
VGA/HDMI/DVI
Touch Panel :
Projected Capacitive Touch Panel with 10 Multi Touch Points
Touch interface :
USB/RS232
Power source :
External Power Supply with Universal/Auto-Sensing, DC 12V for 7”~27” Internal Power Supply with Universal/Auto-Sensing, AC100~240V for 32”~43”
Mounting :
VESA mounting
Products status :
Stock
Touchscreen type :
10 point PCAP multi touch
Description

43" pure flat lcd panel IP65 NEMA 4 capacitive touch screen industrial monitor

SPECIFICATIONS

2. 1 General

Model ITD43OFT5K1
IP IP65(for front panel only)
Outline Dimensions Width: 997mm Height: 590mm Depth: 58mm
Weight(N.W/G.W) 26.29Kg / 35.23Kg (Approx.)
Packing Dimension 1145(W) ×710(H)×190(D)mm
Speakers 8Ω10W
LCD Type 43” Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: Internal Power Supply
Input (line) Voltage: 100-240 VAC
Output Voltage/Current: 12V
Power Consumption 85W
Mount Interface

1)VESA 400mm×300mm

2)Side Mounting Brackets
Regular Warranty 1 Year for TFT Panel and 2 Years for Others
Agency Approval FCC,CE,RoHS Certified

2. 2 LCD Specification

Active Area(mm) 941.184(H) x 529.416(V)
Resolution 1920×1080
Dot Pitch(mm) 0.4902×0.4902
Nominal Input Voltage VDD +12V(Typ)
Viewing angle (L/R/T/B) 89°/89°/89°/89°
Contrast 1200:1
Luminance(cd/m2) 400
Response Time(Rising/Falling) 8ms
Support Color 16.7M
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type
Operating Temperature -10～60°C
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android

2.4 Internal Power Supply

Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10～50°C
Storage Temp. -10～60°C
Operating RH: 20%～80%
Storage RH: 10%～90%

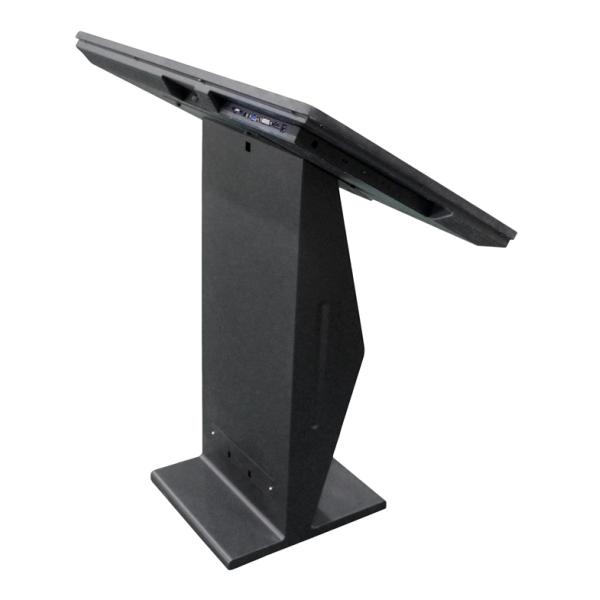

Product image:

43

43
43
43
