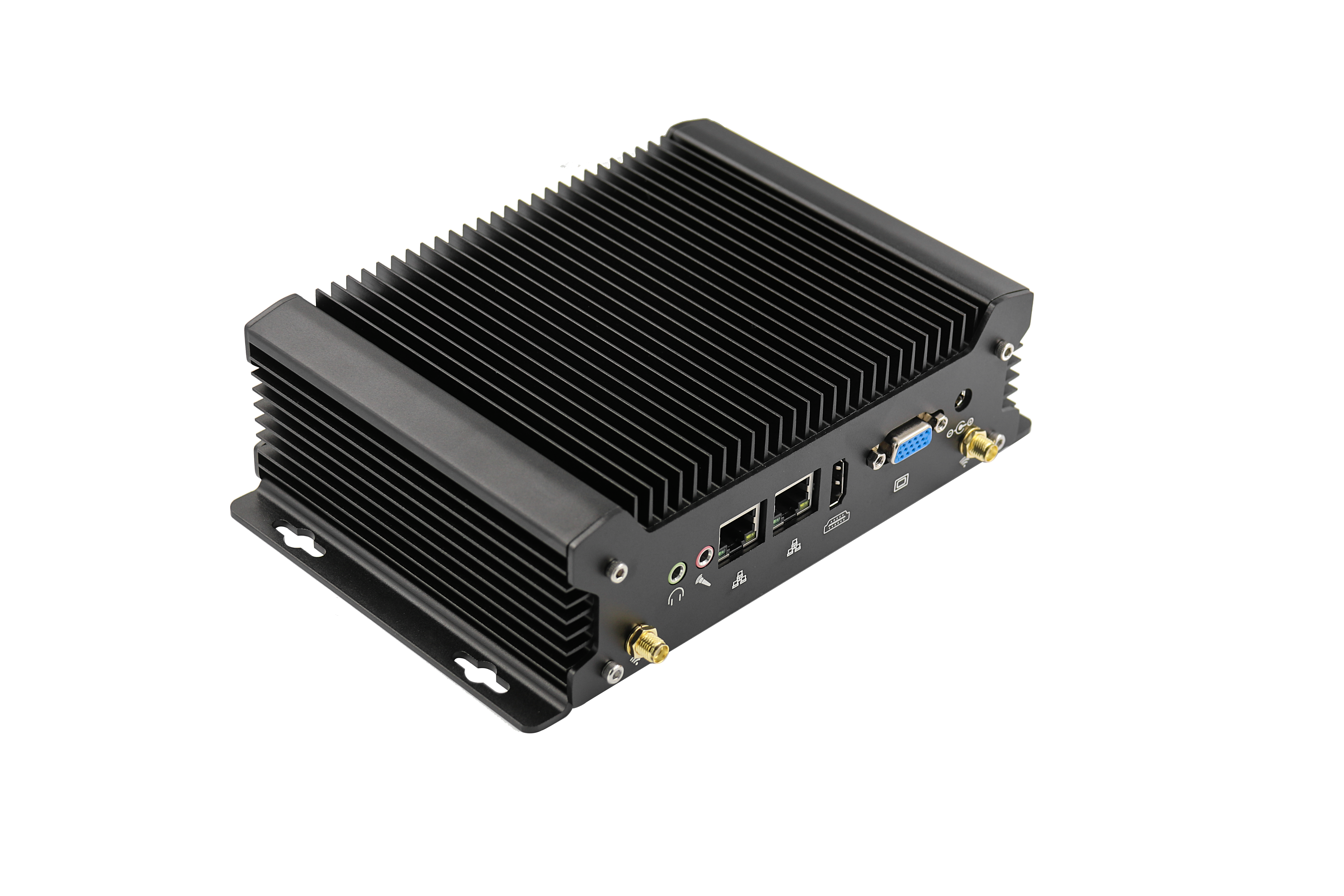

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD-MNPC-8260U-IBC8
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000 units per month
Packaging Details :
Foam,gift box,wooden case,pallet
Mounting :
Side mounting brackets
Optional Processor :
Onboard Intel® Core® i5-8260u CPU Coffee Lake
Operating temperature :
-20 to 60℃
dimension :
193.9 x 127 x 57.2 mm
LAN :
2 x GbE RJ45 Realtek 8111H
I/O :
4 x USB3.0，4 x USB2.0 2 x DB9 COM 2 x HDMI，1 x VGA(or HDMI) 1 x Power Button DC 12-19V input 1 x aduio，1x Min-in 2 x Antenna interface for WIFI/3G/4G
Power Supply :
DC 12V-19V
MTBF :
50000H
OS Support :
Windows 11/10 Windows 8, Windows 7, Linux Ubuntu
Warranty :
2 years
Applications :
Automation, IoT, Warehouse&Logistics, Kiosks
Price :
TBA
Description

Industrial PC fanless computer Intel Core 8260u Coffee Lake dual HDMI outputs

Features of Industrial PC:

  • Onboard Intel® Core® i5-8260u Coffee Lake
  • 4th: DDR3L SODIMM x1 6/7/8th: DDR4 SODIMM x1 8/10th: DDR4 SOIMM x2
  • 2x RS-232 COM
  • 2x GbE RJ45 Realtek 8111H
  • 2xHDMI outputs, Dual HDMI outputs
  • Fanless Operation
  • DC Support 12~19V

Specifications of Industrial PC:

Specifications
system
Processor Onboard Intel Celeron/Core 4th/6th/7th/8th/10th i3/i5/i7 CPU
System memory
4th: DDR3L SODIMM x1,Up to 8GB
6/7/8th: DDR4 SODIMM x1,Up to 16GB
8/10th: DDR4 SOIMM x2,Up to 32GB
Ethernet 2 x GbE RJ45 Realtek 8111H
I/O Port
4 x USB3.0,4 x USB2.0
2 x DB9 COM
1 x HDMI,1 x VGA(or HDMI)
1 x Power Button
DC 12-19V input
1 x aduio,1 x Min-in
2 x Antenna interface for WIFI/3G/4G
Storge Disk Driver
4th: 1x MSATA
6/7/8/10th: 1x M.2 2280
1x 2.5寸 HDD/SSD
Expansion Slot Mini-PCIe x1 full size/half size with SIM Card for 3G/4G or wifi/BLT
OS support Windows 7/8/10/11,WES 7/10,LINUX
Watchdog timer 255 Levels
Power
DC input 12V-19V
Mechanical
Construction Aluminum
Mounting Desktop/ wall mounted
Dimension 193.9 x 127 x 57.2 mm
Net Weight 1 Kg
Environmental
Operating TEMP -30℃ to +70℃
Storage TEMP -20℃ to +60℃
Storage Humidity 10%~90% @30℃,non-condensing

Displays of industrial PC:

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
