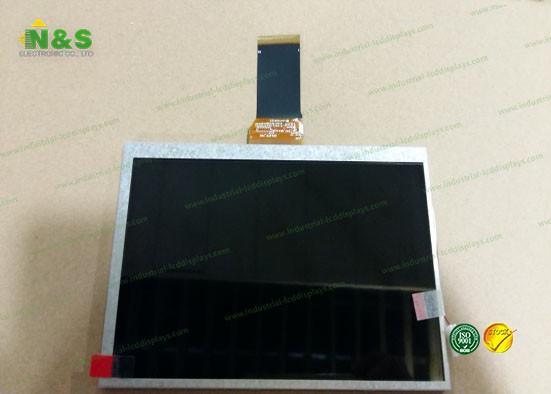

Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area
Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area
Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area
Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area
Specifications
Brand Name :
Tianma LCD Displays
Model Number :
TM070RDH28
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
TIANMA
Panel Model :
TM070RDH28
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Surface :
Antiglare
Brightness :
450 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
16.7M (8-bit) , CIE1931 50%
Description

Tianma TM070RDH28 colour lcd display 7.0 inch 154.08×85.92 mm Active Area

TIANMA TM070RDH28 General Features

Panel Brand : TIANMA
Panel Model : TM070RDH28
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×85.92 mm
Outline : 164.9×100 mm
Surface : Antiglare
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S8P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 3.3/10.4/-16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

Company Strength:

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3.Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM045YYSP02 Tianma 4.5" 480×854
TM016XYHP01 Tianma 1.6" 256×320
TM050JYSP01 Tianma 5.0" 720×1280
TL055VGXP01 Tianma 5.5" 1080×1920
TM045YYHP08 Tianma 4.5" 480×854
TL050JGXP01 Tianma 5.0" 720×1280
TM050JYHP05 Tianma 5.0" 720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk

TIANMA TM070RDH28 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.335

Packing & Delivery for our LCD Screen Panel Replacements:

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.
