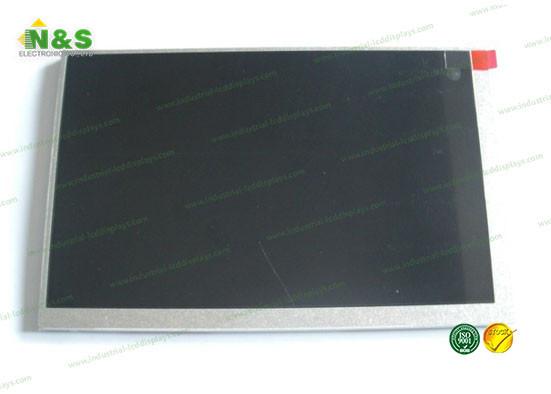

CPT LCD Display CLAA070ND30CW 7.0 inch 153.6×90 mm Active Area 165.75×105.39×3 mm Outline
CPT CLAA070ND30CW General Features
Panel Brand : | CPT |
Panel Model : | CLAA070ND30CW |
Panel Type : | a-Si TFT-LCD , Panel |
Panel Size : | 7.0 inch |
Resolution : | 1024(RGB)×600 , WSVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 153.6×90 mm |
Outline : | 165.75×105.39×3 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 700:1 (Typ.) |
Display Colors : | 16.2M (6-bit + FRC) , CIE1931 50% |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED |
Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
Input Voltage : | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
Company Strength:
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
CLAG045LJ72 | CPT | 4.5" | 480×854 |
CLAN050WD61 6XM | CPT | 5.0" | 720×1280 |
CLAD015GC41 AX | CPT | 1.5" | 240×240 |
CLAA090WK05XN | CPT | 9.0" | 1280×720 |
CLAC080XA12LW | CPT | 8.0" | 1024×768 |
CLAD015GB01 AX | CPT | 1.5" | 240×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
