24.0 inch VA Normally Black Transmissive computer lcd screen Panel Model G240HW01 V0
24.0 inch VA Normally Black Transmissive computer lcd screen Panel Model G240HW01 V0
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G240HW01 V0
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
G240HW01 V0
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
24.0 inch
Active Area :
531.36×298.89 mm
Outline :
556×323.2×17 mm
Surface :
Antiglare, Hard coating (3H)
Frequency :
60Hz
Lamp Type :
10S7P WLED
Description

24.0 inch VA Normally Black Transmissive computer lcd screen Panel Model G240HW01 V0

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

AUO G240HW01 V0 General Features

Panel Brand : AUO
Panel Model : G240HW01 V0
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 24.0 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : VA, Normally Black, Transmissive
Active Area : 531.36×298.89 mm
Outline : 556×323.2×17 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 5000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 16/9 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

AUO G240HW01 V0 Mechanical Features:

Display Mode : VA, Normally Black, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 5000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 16/9 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)


Our Advantages for LCD panel:

1 FOG automatical device can ensure the capacity of 1000,000 per month.
2 MOQ can be 100pcs, lead time of standard products is 20 days.
3 Reliability test and full examination to ensure the high quality of the display.
4 OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5 Strictly ISO quality management system.
6 Mature and Professional R&D and after service.
7 Various cooperation experience with big brands

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
A060SE02 V1 AUO 6.0" 800×600
A090XE01 V6 AUO 9.0" 1024×768
A090XE01 V5 AUO 9.0" 1024×768
A043SE01 V3 AUO 4.3" 600×800
H283QN00 V6 AUO 2.8" 240×320
M270DAN01.0 CELL AUO 27.0" 2560×1440
H644DAN01.1 AUO 6.5" 1080×1920
B140RTN02.0 CELL AUO 14.0" 1600×900

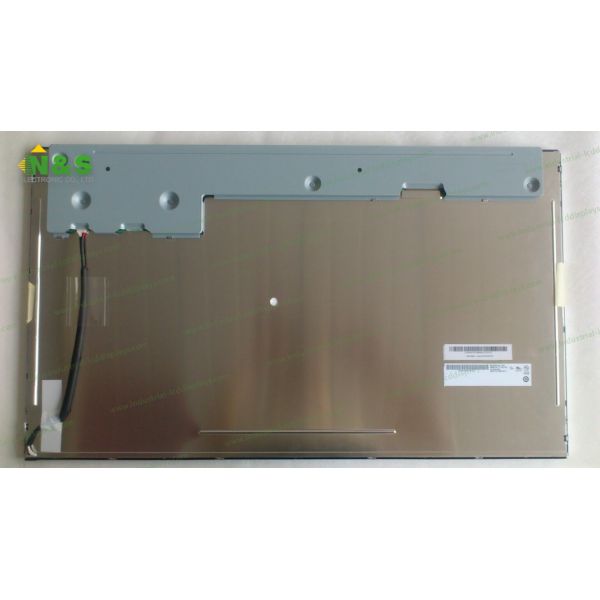

Details Pictures for AUO LCD Panel G240HW01 V0
24.0 inch VA Normally Black Transmissive computer lcd screen Panel Model G240HW01 V0
