1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
Specifications
Brand Name :
AUO LCD Panel
Model Number :
G173HW01 V0
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
G173HW01 V0
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
17.3 inch
Active Area :
381.888×214.812 mm
Outline :
403×240×13 mm
Surface :
Glare (Haze 0%), Hard coating (3H)
Frequency :
60Hz
Lamp Type :
WLED
Description

1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

AUO G173HW01V0 General Features

Panel Brand : AUO
Panel Model : G173HW01 V0
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 17.3 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 381.888×214.812 mm
Outline : 403×240×13 mm
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 37/3 (Typ.)(Tr/Td)
Viewing Angle : 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 3.3V (Typ.)


Packaging & Delivery

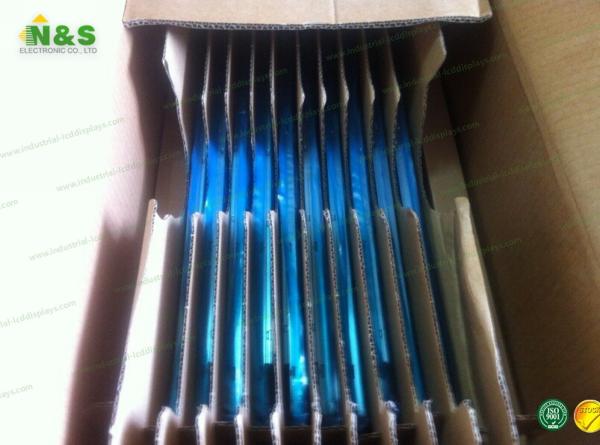

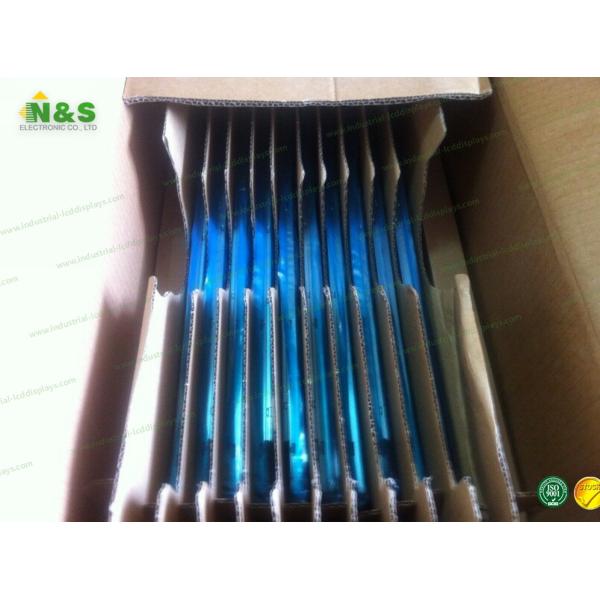

Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.

AUO G173HW01V0 Mechanical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 37/3 (Typ.)(Tr/Td)
Viewing Angle : 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.300; Wy:0.310
White Variation : 1.25/1.33 (Typ./Max.)(13 points)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H497DAN02.1 AUO 5.0" 1080×1920
M270HVN02.3 CELL AUO 27.0" 1920×1080
M270HVN02.2 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

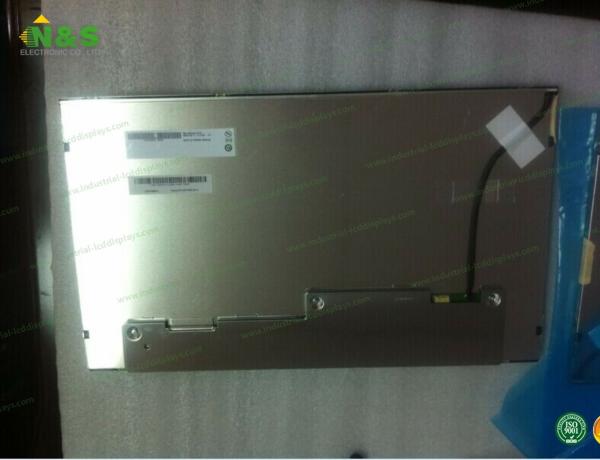

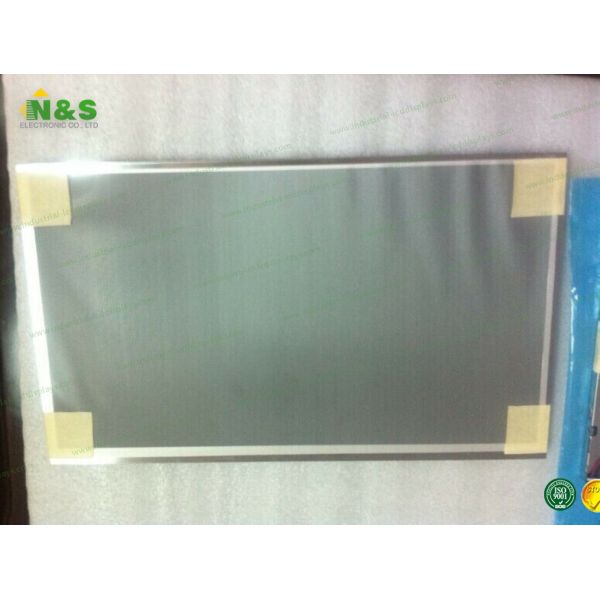

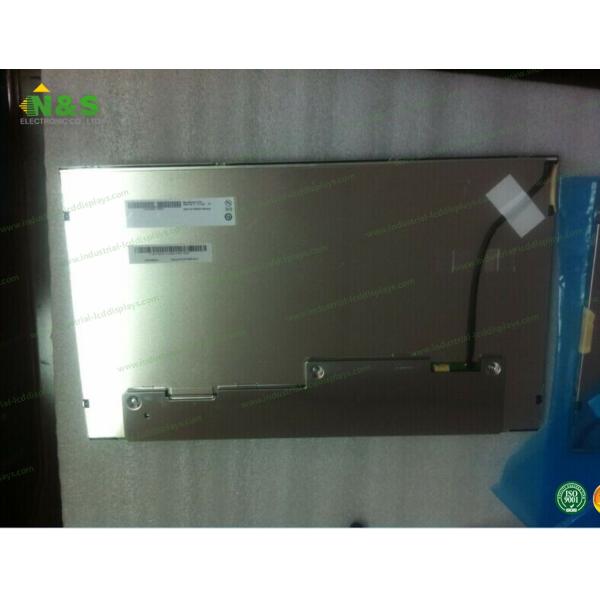

Details Pictures for AUO LCD Panel G173HW01V0

1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H

1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H


1920 × 1080 FHD lcd character display G173HW01 V0 AUO LCD Display Hard coating 3H
