4.3 inch A043FW05 V8 mini lcd display 600 cd / m² Brightness
4.3 inch A043FW05 V8 mini lcd display 600 cd / m² Brightness
4.3 inch A043FW05 V8 mini lcd display 600 cd / m² Brightness
4.3 inch A043FW05 V8 mini lcd display 600 cd / m² Brightness
Specifications
Brand Name :
AUO
Model Number :
A043FW05 V8
Certification :
ISO9001 ,CE
Place of Origin :
Japan,Korea,TAIWAN
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand: :
AUO
Panel Type: :
a-Si TFT-LCD , Panel
Resolution : :
480(RGB)×272 , WQVGA
Active Area : :
95.04×53.856 mm
Brightness : :
600 cd/m² (Typ.)
Contrast Ratio : :
400:1 (Typ.)
Description

4.3 inch A043FW05 V8 mini lcd display 600 cd / m² Brightness

AUO A043FW05 V8 General Features

Panel Brand : AUO
Panel Model : A043FW05 V8
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 4.3 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2×4.5 mm
Surface : Hard coating (3H)
Brightness : 600 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 15/20 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 9S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 3.3/3.3V (Typ.)(VDD/VDDIO)

AUO A043FW05 V8 Mechanical Features

Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.066×0.198 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Surface : Hard coating (3H)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 100.8×58.76 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9/4.5 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without

What We Can Do for You

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

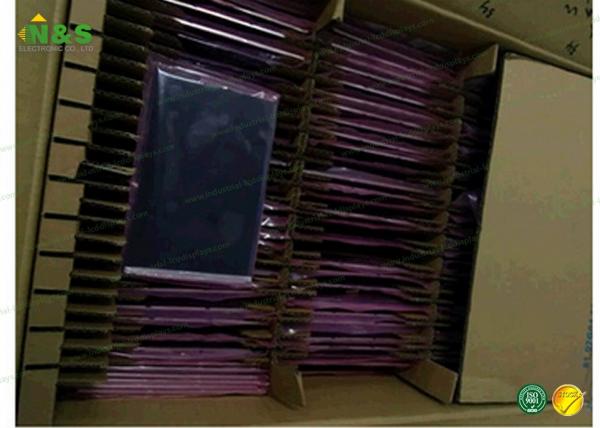

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
H020HD01 V0 AUO 2.0" 176×220
A020AE01 V0 AUO 2.0" 172×72
A060SE03 V0 AUO 6.0" 600×800
A060XE01 V1 AUO 6.0" 768×1024
A060SE02 V8 AUO 6.0" 800×600
A090XE02 V3 AUO 9.0" 1024×768
A060SE02 VC AUO 6.0" 800×600

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

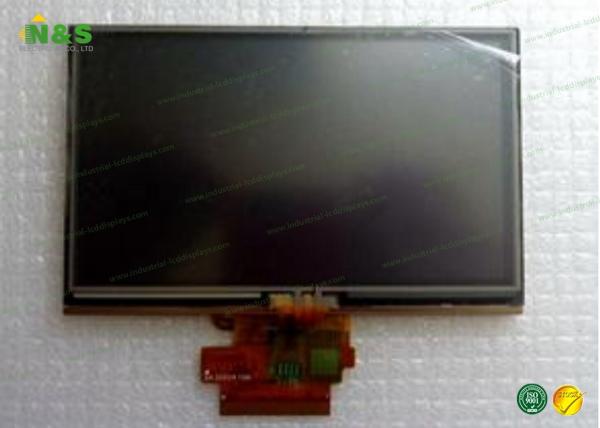

Details Pictures for AUO A043FW05 V8 .
