AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency
AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency
AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency
AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
AT043TN25 V.2
Certification :
ISO9001
Place of Origin :
Japan,Korea,Taiwan
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
CHIMEI INNOLUX
Active Area :
95.04×53.856 mm
Display Colors :
16.7M (8-bit) , CIE1931 50%
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Outline :
105.5×67.2×3.1 mm
Description

AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency

CHIMEI INNOLUX AT043TN25 V.2 Mechanical Features

Panel Size : 4.3 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.066×0.198 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45g (Typ.)
Surface : Antiglare
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 98.7×57.5 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Why Choose US

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 13 years experience in intelligent controller R&D and manufacturing.

6. Strong R&D term supports perfect customized projects.

7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.

8. Fabulous after-sale service.

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

CHIMEI INNOLUX AT043TN25 V.2 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 8S1P
Lamp Shape : 1 string
Lamp Life Time : 20K(Min.) (Hours)
Lamp Voltage : 25.2/27.9/31.5V (Min./Typ./Max.)
Lamp Current : 18/20/22mA (Min./Typ./Max.)
Lamps Power Consumption : 0.56W (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AE060RN01 Innolux 6.0" 800×600
F050A12-601 Innolux 5.0" 480×854
85C02502-Y21 Innolux 2.5" 320×240
V260B2-P03 Rev.C2 Innolux 26.0" 1366×768
G070YG1-P01 Innolux 7.0" 800×480

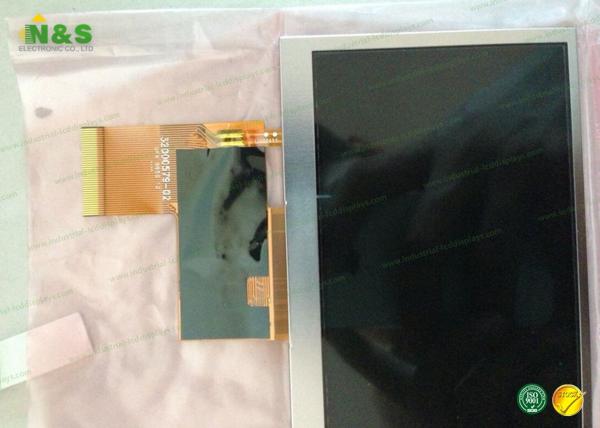

Details Pictures for AT043TN25 V.2

AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency

AT043TN25 V.2 Antiglare Surface flat lcd monitor 60Hz Frequency
