AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
AT050TN43
Certification :
ISO9001
Place of Origin :
Japan,Taiwan
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Input Voltage :
3.3V (Typ.)
Brightness :
350 cd/m² (Typ.)
Outline :
118.15×77.55×3.3 mm
Contrast Ratio :
500:1 (Typ.)
Display Colors :
16.7M (8-bit)
Description

AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface

CHIMEI INNOLUX AT050TN43 General Features

Panel Brand :CHIMEI INNOLUX
Panel Model : AT050TN43 1 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 108×64.8 mm
Outline : 118.15×77.55×3.3 mm
Surface : Antiglare
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

CHIMEI INNOLUX AT050TN43 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

CHIMEI INNOLUX AT050TN43 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 20K(Min.) (Hours)
Lamp Voltage : 21.7±2.1V
Lamp Current : 40±4mA
Lamps Power Consumption : TBD
Interface Type : Included in panel signal interface
Lamp Driver Board : No

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V236BJ1-PE2 Innolux 23.6" 1366×768
V390HN1-P02 Innolux 39" 1920×1080
M280HKJ-P02 Innolux 28.0" 1920×1080
PG047IC-01B Innolux 4.7" 720×1280
PP037IC-01B Innolux 3.7" 480×800
V650DK1-QS2 Innolux 65" 3840×2160
MT190AW02 V.W CELL Innolux 19.0" 1440×900
V580HJ1-PD6 Innolux 58" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Competitive Advantage:

1. We are a leading manufacturer of LCD products for more than 10 years.

2. We got the ISO9001 quality management system certification.

3. We have our own R&D team, and accept OEM order as per customer’s design.

4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.

5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.

6. All products win the certificate of CE,CCC,FCC and RoHS.

7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.

8. 3-years warranty is offered.

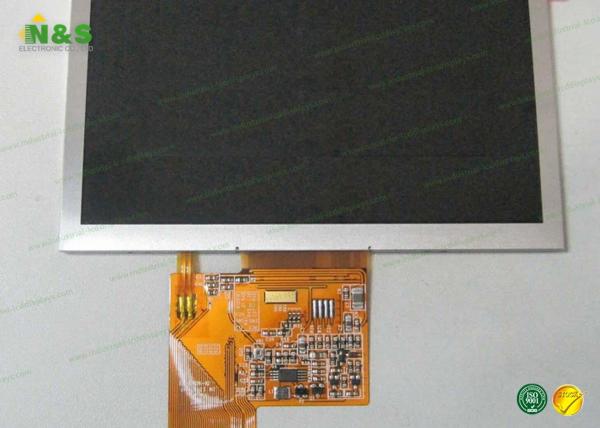

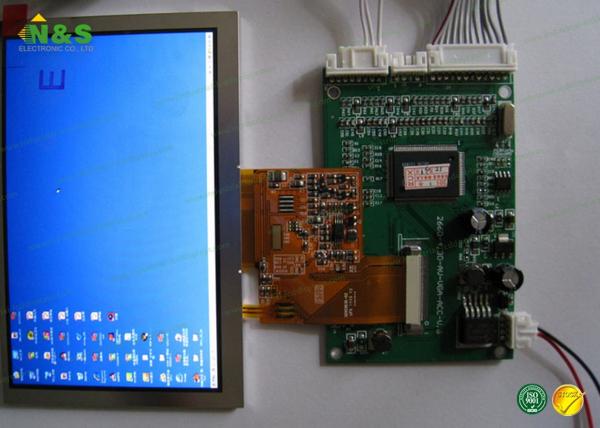

Pictures of AT050TN43:

AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface

AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface

AT050TN43 5.0 inch lcd display screen Parallel RGB (1 ch 8 bit) 40 pins Signal Interface
