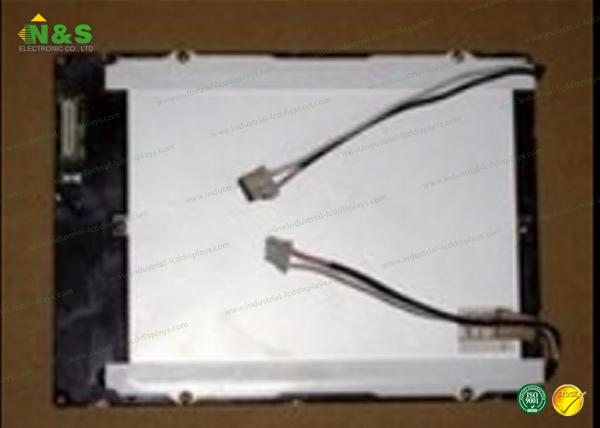

PVI LCD Display PD057VU5 5.7 inch 115.2×86.4 mm Active Area 144×104.6×13.3 mm Outline
PVI LCD Display PD057VU5 5.7 inch 115.2×86.4 mm Active Area 144×104.6×13.3 mm Outline
Specifications
Brand Name :
PVI
Model Number :
PD057VU5
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Brightness :
700 cd/m² (Typ.)
Contrast Ratio :
600:1 (Typ.)
Display Colors :
262K (6-bit)
Response Time :
15/25 (Typ.)(Tr/Td)
Panel Model :
PD057VU5
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
5.7 inch
Resolution :
320(RGB)×240 , QVGA
Description

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED312TT2 E Ink 31.2" 2560×1440
ES133TE1 E Ink 13.3" 2200×1650
ES133TT2 E Ink 13.3" 2200×1650
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

PVI LCD Display PD057VU5 5.7 inch 115.2×86.4 mm Active Area 144×104.6×13.3 mm Outline

The reasons you choose us

1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.


PVI PD057VU5 General Features

Panel Brand : PVI
Panel Model : PD057VU5
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.6×13.3 mm
Surface : Antiglare
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S12P WLED
Signal Interface : TTL (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)(VCC)

PVI PD057VU5 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.340
White Variation : 1.17/1.25 (Typ./Max.)(9 points)

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options.

• All steel construction provides rugged frame for public use environments

• Two independent touch points

• Improved power efficiency and reduced consumption

• ISO9001 approvals.
