Specifications
Brand Name :
CPT LCD Displays
Model Number :
CLAA061LA0BCW
Certification :
ISO9001
Place of Origin :
China,Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS Per Day
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Aspect Ratio :
17:9 (H:V)
Outline Depth :
5.0/5.2 (Typ./Max.) mm
Panel Model :
CLAA061LA0BCW
Lamp Type :
3S7P WLED Without Driver
Signal Interface :
TTL (1 ch, 6-bit) , 60 pins
Active Area :
136.2×72 mm
Description

6.1 inch 110g (Typ.) Weight CLAA061LA0BCW Antiglare, Hard coating (3H) Surface 60Hz Frequency

Specifications:

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Panel Size : 6.1 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 153 PPI
Aspect Ratio : 17:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.05675×0.15 mm (H×V)
Pixel Pitch : 0.17025×0.15 mm (H×V)
Weight : 110g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 136.2×72 mm (H×V)
Bezel Area : 138.3×74.0 mm (H×V)
Outline Dimension : 149×82.9 mm (H×V)
Outline Depth : 5.0/5.2 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without




More Information For N&S Electronic Co.,LTD:

1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China from 2010, you can get the most competitive price for real products.
2. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from N&S you can enjoy the real panels directly from original factory; Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them.
3. Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from HKSEBO you can get more convenient delivery;
4. long-term partner:
* Products are sold to more than 20 countries, so from N&S you can get more stable supplying promise;
5. Super After-Sale service:
N&S will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
6. the best TFT LCD solution:
*more tft lcd model detail information including,size, resolution, brightness, operating temperature or life time etc.



CPT CLAA061LA0BCW Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 1.7W (Typ.)
Time Controller (T-CON) : Need external T-CON



Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per customer’s design.
4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8. 3-years warranty is offered.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
CLAN080WQ65 XG CPT 8.0" 800×1280
CLAN070NQ06 CPT 7.0" 1024×600
CLAG050LD01 CPT 5.0" 480×854
CLAN060LB41 2XC CPT 6.0" 540×960
CLAD015GA01 CXA CPT 1.5" 480×240
CLAN101FP05 XG CPT 10.1" 1920×1200
CLAG101WH11 LXA CPT 10.1" 1280×800
CLAF055WB42 TXX CPT 5.5" 720×1280

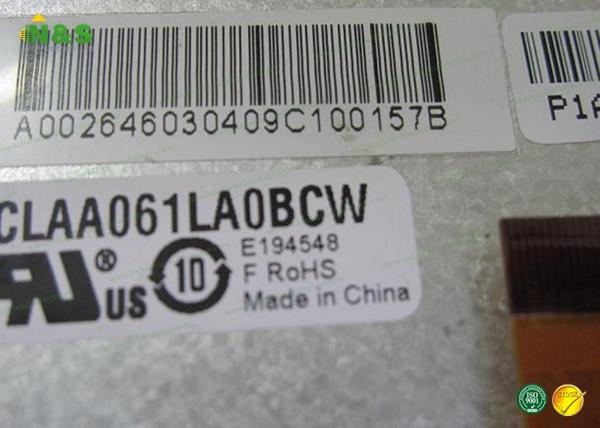

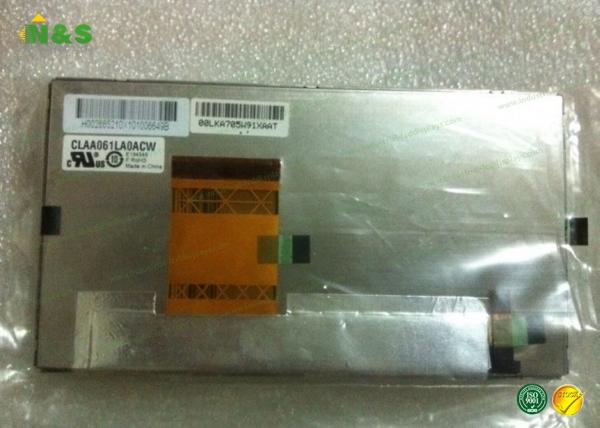

Details Pictures for the CLAA061LA0BCW Industrial LCD Displays :
6.1 inch  110g (Typ.)  Weight  CLAA061LA0BCW  Antiglare, Hard coating (3H)  Surface   60Hz  Frequency
6.1 inch  110g (Typ.)  Weight  CLAA061LA0BCW  Antiglare, Hard coating (3H)  Surface   60Hz  Frequency
6.1 inch  110g (Typ.)  Weight  CLAA061LA0BCW  Antiglare, Hard coating (3H)  Surface   60Hz  Frequency
