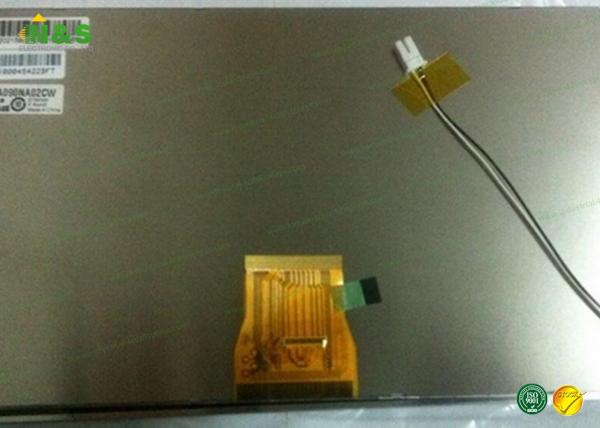

CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600
CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600
CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600
CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600
Specifications
Brand Name :
CPT
Model Number :
CLAA090NA02CW
Certification :
ISO9001
Place of Origin :
Japan,Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Surface :
Antiglare, Hard coating (3H)
Display Colors :
262K/16.2M (6-bit / 6-bit + Dithering) , CIE1931 50%
Panel Type :
a-Si TFT-LCD , Panel
Pixel Configuration :
RGB Vertical Stripe
Weight :
TBD
Outline Depth :
3.5±0.3 mm
Description

CPT CLAA090NA02CW Industrial LCD Displays , 9.0 inch color lcd screen 1024 × 600

CPT CLAA090NA02CW LCD Display Basic Info

Panel Brand : CPT Brightness : 300 cd/m² (Typ.)
Panel Model : CLAA090NA02CW Contrast Ratio : 500:1 (Typ.)
Panel Type : a-Si TFT-LCD , Panel Display Colors : 262K/16.2M (6-bit / 6-bit+Dithering) , CIE1931 50%
Panel Size : 9.0 inch Response Time : 25 (Typ.)(Tr+Td)
Resolution : 1024(RGB)×600 , WSVGA Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Display Mode : TN, Normally White,Transmissive Frequency : 60Hz
Active Area : 196.608×114.15 mm Lamp Type : 4S6P WLED Without Driver
Outline : 211.1×126.5 mm Signal Interface : LVDS (1 ch, 8-bit) , 60 pins
Surface : Antiglare, Hard coating (3H) Input Voltage : 3.3V (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAG045LJ72 CPT 4.5" 480×854
CLAN050WD61 6XM CPT 5.0" 720×1280
CLAD015GC41 AX CPT 1.5" 240×240
CLAA090WK05XN CPT 9.0" 1280×720
CLAC080XA12LW CPT 8.0" 1024×768
CLAD015GB01 AX CPT 1.5" 240×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

CPT CLAA090NA02CW Optical Features

Display Mode :TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.43 (Typ./Max.)(9 points)

Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service:

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

Packaging & Delivery

Packaging Details:

Safey package

Plastic trays inside

2 layes of cartons

Fragile sign on top

Can be customize 3.5 inch spare parts auo used lcd panel

Delivery Detail: 1-3 Working Days
