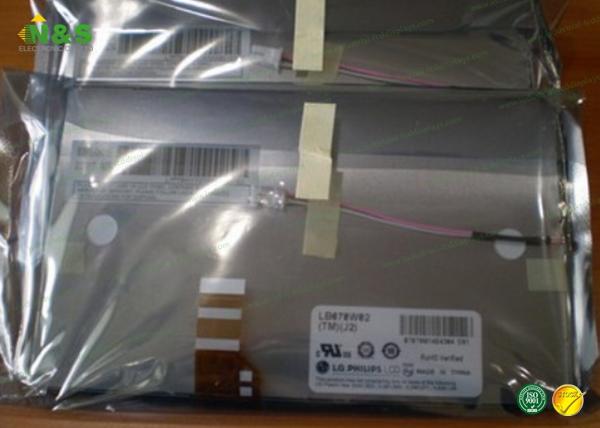

LB070W02- TME6 lg lcd display panel 7.0 inch , Antiglare touch screen lcd panel
LB070W02- TME6 lg lcd display panel 7.0 inch , Antiglare touch screen lcd panel
Specifications
Brand Name :
LG Display
Model Number :
LB070W02-TME6
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Mode :
TN, Normally White, Transmissive
Active Area :
154.08×86.58 mm
Outline :
164.9×100 mm
Surface :
Antiglare
Viewing Angle :
65/65/45/55 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
3S5P WLED
Signal Interface :
TFT Specific Analog RGB , 26 pins
Input Voltage :
3.3/5.0/16.5/-10V (Typ.)(VDD1/VDD2/VGH/VGL)
Description

LB070W02- TME6 lg lcd display panel 7.0 inch , Antiglare touch screen lcd panel

Our Company Strength in LCD Screen Sourcing:

1. ISO9001 certificated, Factory Direct Supplied

2. Competitive Price and Short Lead-time

3. Professional Team with Rich Experiences in LCD screen international trade communication.

4. Small MOQ Support & Fast Response to Customers

5. Long Product Life Time

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LB060S01-FD01 LG Display 6.0" 800×600
LD470DUJ-SFE2 LG Display 47" 1920×1080
LC650EQK-FGK1 LG Display 65" 3840×2160
LH470M01-SH01 LG Display 4.7" 540×960
LH250Q01-TH03 LG Display 2.5" 320×240
LH320H02-SH03 LG Display 3.2" 320×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

LG Display LB070W02-TME6 General Features

Panel Brand : LG Display
Panel Model : LB070W02-TME6
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 480(RGB)×234
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×86.58 mm
Outline : 164.9×100 mm
Surface : Antiglare
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : Full color
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 65/65/45/55 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S5P WLED
Signal Interface : TFT Specific Analog RGB , 26 pins
Input Voltage : 3.3/5.0/16.5/-10V (Typ.)(VDD1/VDD2/VGH/VGL)

LG Display LB070W02-TME6 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 480(RGB)×234
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.107×0.370 mm (H×V)
Pixel Pitch : 0.321×0.370 mm (H×V)
Weight : 170g (Max.)
Surface : Antiglare
Active Area : 154.08×86.58 mm (H×V)
Bezel Area : 157.2×89.7 mm (H×V)
Outline Dimension : 164.9×100 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without
